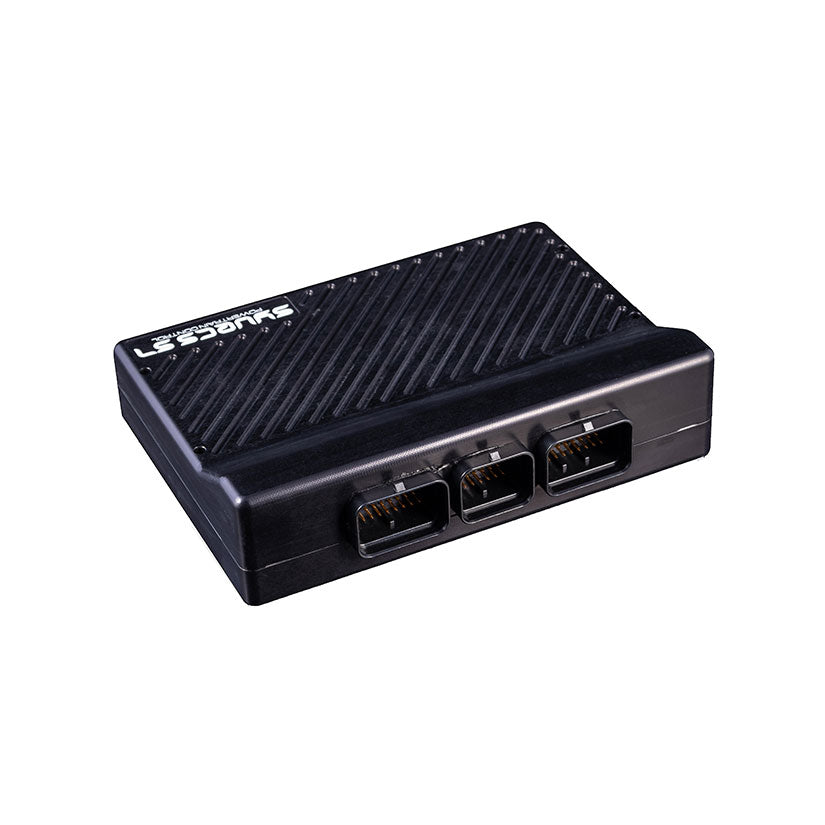

Syvecs S8C ECU
Couldn't load pickup availability
- SKU SYV-S8
- Model S8C ECU
- Make Syvecs
Do you have questions about this product?
Syvecs S8C ECU | High-Level Engine Management Control
The Syvecs S8C is a premier standalone ECU designed for professional tuners and motorsport enthusiasts who require absolute precision and high-speed processing. Utilizing a sophisticated Twin Processor architecture, the S8C pairs a high-speed RISC processor for code execution with a massive FPGA dedicated to engine position tracking. This unique hardware combination ensures that code scheduling remains entirely independent of signal patterns, delivering unmatched accuracy, efficiency, and flexibility even during the most aggressive transient engine conditions.
Encased in a rugged, sealed billet aluminium unit with a single 88-pin waterproof connector, the S8C is built to withstand the rigors of competitive motorsport while offering the comprehensive I/O needed for high-end builds.
Key Technical Specifications
| Feature | Specification Details |
| Processor | Twin Processor (RISC + FPGA) |
| Analogue Inputs | 24 x General Purpose (16 Bipolar, 4 Sensor, 4 Thermistor) |
| Driver Outputs | 28 x High/Low Side (Injectors, PWM, Half-Bridge) |
| Ignition Control | 8 x TTL / IGBT Ignition Drivers |
| Lambda/EGT | 2 x NTK Lambda Inputs & 2 x K-Type EGT Circuits |
| Communications | 2 x CAN 2.0B, RS232, 100Mhz Full Duplex Ethernet |
| Data Logging | Up to 64MB Internal Memory + Onboard Laptop Logging |
| Casing | Anodised Billet Aluminium (IP-Rated 88-Pin Connector) |
Why the Syvecs S8C is the Tuner's Choice
-
Unrivaled Precision: The FPGA-driven tracking provides rock-solid ignition and injection timing, making it the ideal backbone for ultra-high performance platforms like the Nissan R35 GTR and Porsche 996/997.
-
Comprehensive Sensor Support: With 24 general-purpose inputs, dual NTK Wideband Lambda interfaces, and dual knock inputs, you can monitor every critical engine parameter with laboratory-grade accuracy.
-
Advanced Logic & Control: From complex Drive-By-Wire (DBW) strategies to sophisticated traction control and launch parameters, the S8C handles advanced algorithms with ease while remaining intuitive to map via Syvecs SCal software.
-
Motorsport Reliability: Featuring a wide 6V to 20V input range with reverse polarity protection and an operating temperature range of -25°C to +95°C, the S8C is engineered for consistent performance under pressure.
-
High-Speed Connectivity: A 100Mhz Ethernet connection ensures lightning-fast data downloads and real-time PC programming, saving valuable time during dyno sessions and trackside tuning.
Industry-Leading Application Support
The Syvecs S8C is the trusted control unit for world-record-setting builds and is the foundation for numerous high-end wire-in and custom integration projects across the globe.
