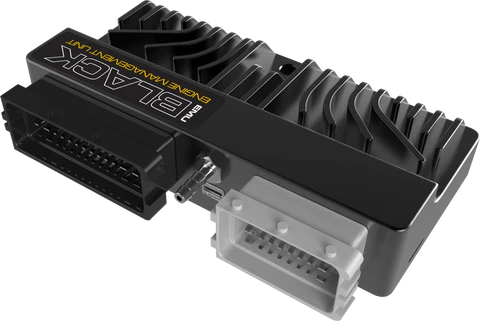

Ecumaster EMU Black ECU

Ecumaster EMU Black ECU – New Version (USB-C Revision P)

The Ecumaster EMU Black is a class-leading, standalone engine management system designed to command the most complex and advanced internal combustion engines. This New Version (Revision P) features a robust USB-C interface, replacing the older micro-USB for superior durability and seamless PC communication. Engineered for 1 to 12-cylinder engines, the EMU Black is a comprehensive, all-in-one solution that eliminates the need for external modules, offering built-in control for Drive-By-Wire (DBW), Wideband Lambda, and Variable Valve Timing (VVT).

Designed for the harshest motorsport environments, the EMU Black is housed in a CNC-machined aluminum IP65-rated enclosure. It utilizes automotive-grade components (AEC-Q100 Grade 2) to ensure operational stability across an extreme temperature range of -40°C to +105°C. Whether you are building a professional race car, a high-performance street build, or a custom engine swap, the Ecumaster EMU Black delivers unmatched technical authority and tuning precision.

Technical Specifications & Features

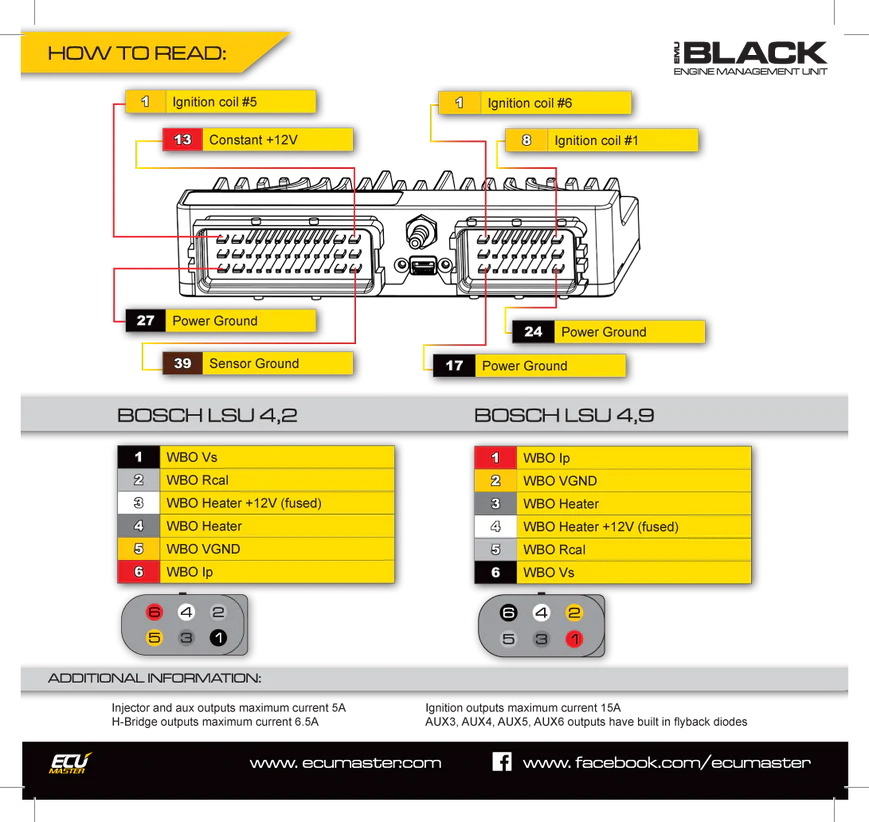

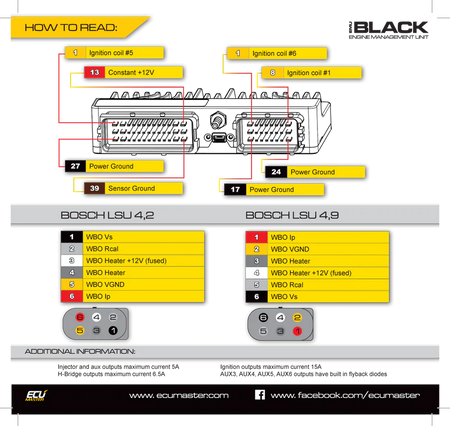

• Integrated Wideband Controller: Direct support for Bosch LSU 4.2 and LSU 4.9 sensors without external hardware.

• Advanced Drive-By-Wire (DBW): Built-in H-Bridges support electronic throttles with advanced 3D PID algorithms and safety plausibility checks.

• Built-in 4-Bar MAP Sensor: Capable of reading up to 400 kPa (approx. 44 psi) of absolute pressure.

• Ignition & Injection: 6 protected fuel injector outputs (5A) and 6 ignition outputs (15A) supporting both active and passive coils.

• VVT Control: Supports up to two camshafts for advanced systems like VVTi, VANOS, and MiVec.

• Flex Fuel Compatibility: Dedicated input for ethanol content sensors with real-time map blending for VE, Ignition, and Boost.

• Motorsport Strategies: Two-step launch control, rolling anti-lag (ALS), gear-cut (flat shift), and pit limiters.

• Inputs/Outputs: 9 analog inputs, 3 digital switch inputs, 2 EGT (Type-K) inputs, and 2 knock sensor channels.

• CAN-Bus 2.0B: Full support for digital dashes (ADU), CAN keyboards, and OEM bus integration.

Hardware Excellence (Revision P Updates)

The latest Revision P version introduces critical hardware refinements:

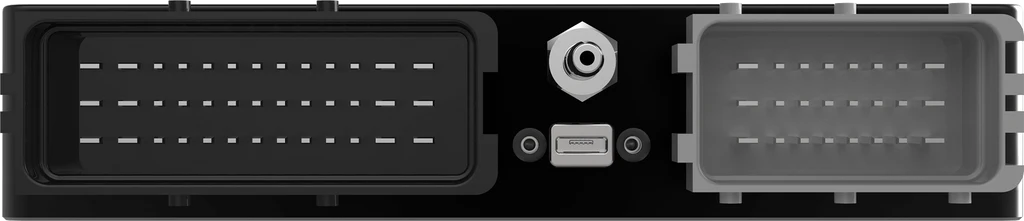

• USB-C Connection: A significant hardware upgrade for reliable, high-speed data logging and calibration.

• Enhanced Voltage Regulators: New regulators provide increased precision for the +5V sensor supply.

• Buffered Switch Inputs: Improved response speed and electrical protection for digital triggers.
