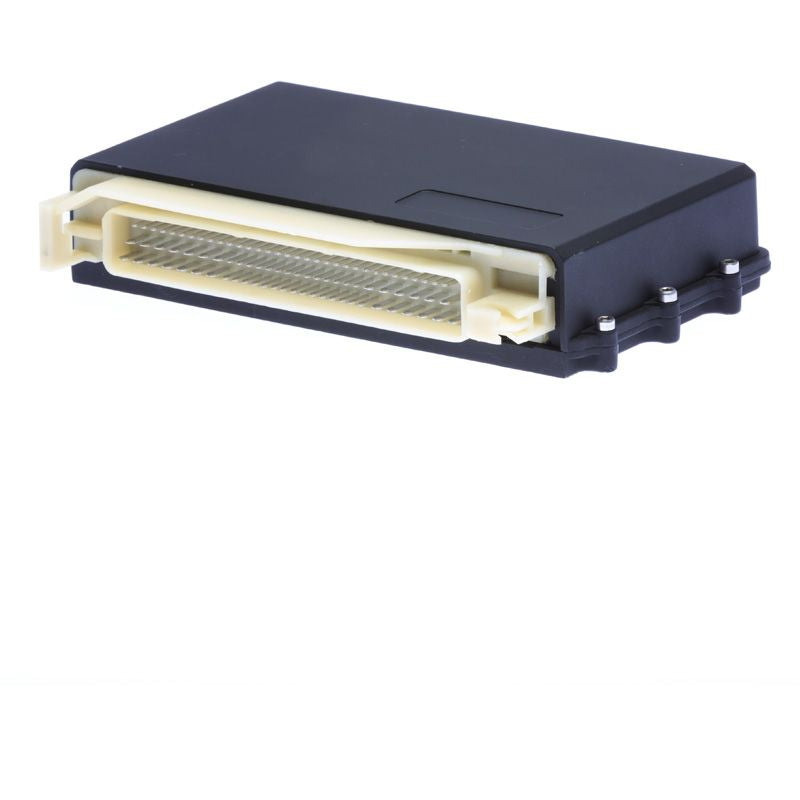

Life Racing Suffix L ECU

Processing

• Powerful RISC CPU for advanced strategy execution
• Custom synchronous FPGA processor for engine position tracking up to 25,000rpm

Outputs

• Up to 26 user configurable general purpose pulse width modulated power outputs, including:
• Up to 6 ignition coil outputs IGBT or TTL (Software configurable)
• Up to 16 PWM/Fuel injector outputs
• Up to 2 full bridges also configurable as 4 half bridges or 4 PWMs (DbW)

Inputs

• 12 user configurable general purpose analogue sensor inputs, including 4 bipolar, inductive or hall effect speed / engine position inputs
• Up to 4 dedicated inputs, including:
• Optional 2 acoustic knock sensor inputs
• Up to 2 wideband (NTK) lambda sensor interfaces

Interfaces

• 100 MHz full duplex Ethernet for calibration, configuration and data download
• 2 CAN 2.0B interfaces for communication with other controllers or logging systems
• RS232 serial interface for communication with other controllers or logging systems

Memory

• 16MB battery backed internal logging memory
• Ultra Fast data download via Ethernet
• Time/Date stamped data via real time clock

Power Supply

• 6 to 32V input voltage range with reverse polarity protection
• 2 regulated 5V sensor supply output with individual short circuit protection
• 5 separately protected sensor and communication ground inputs

Physical

• 88 Way Bosch / AMP sealed connector
• High pressure die cast black powder coated aluminum case
• Maximum dimension including the connector is 183mm x 125mm x 36mm
• Operating temperature up to +85°C
• Sealed to IP65 (when mated)
• Total mass is 485 grams

Available Upgrade Features

• Direct Motor Control
• Gearbox Control
• Traction Control
• Custom Security

Build Time Choice (BTC) Options

• 6 Ignition Outputs
• Adaptive Knock Control
• CAN3 Replaces Second Lambda
• Second Lambda Input
