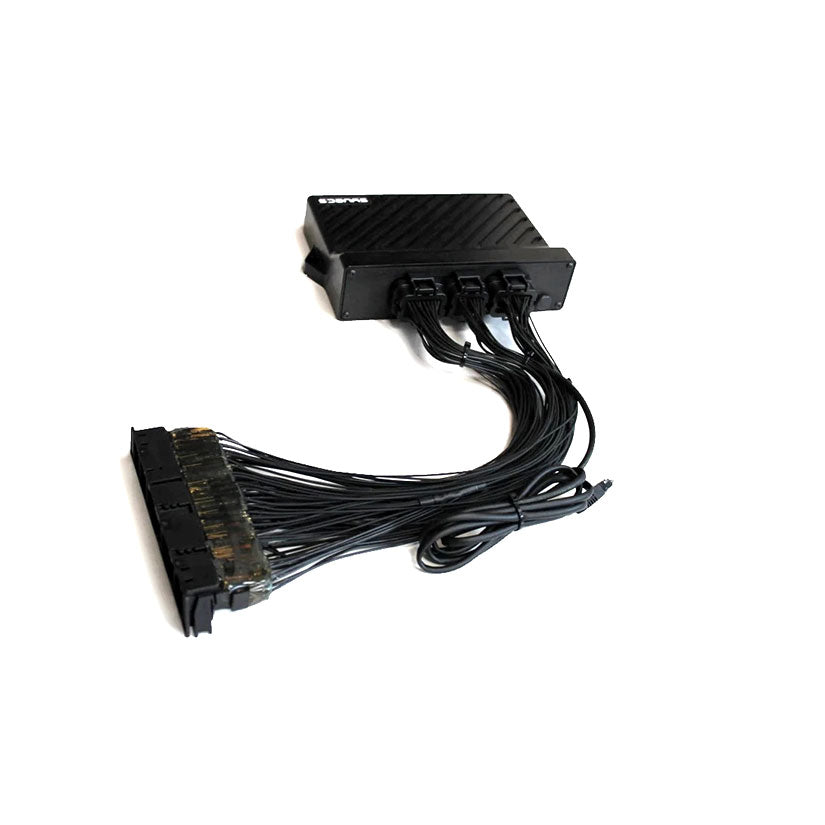

Syvecs S7Plus Plug & Play ECU Kit VW Volkswagen Golf R32

Syvecs S7Plus Plug & Play ECU Kit | VW Golf R32 (MK4 & MK5)

The Syvecs S7Plus VW Golf R32 Plug & Play ECU Kit is the ultimate engine management solution for the legendary 3.2L 24v VR6 engine. Whether you are running a naturally aspirated track build or a high-boost twin-turbo monster, this kit replaces the factory Bosch ECU to provide total authority over the powertrain while maintaining 100% vehicle-wide integration.

Built on a triple-processor architecture with a dedicated FPGA, the S7Plus manages the unique firing order and high-speed engine position tracking of the VR6 with microsecond precision. It is the definitive choice for R32 owners seeking motorsport features like Rolling Anti-Lag, Flex Fuel, and advanced engine safety logic without sacrificing the refined drivability of a Volkswagen.

Total Chassis & Drivetrain Integration

The Golf R32 is defined by its 4Motion grip and gearbox options; the S7Plus is designed to master both:

• Haldex & 4Motion Support: Seamless communication with the Haldex controller ensures your 4WD system remains fully functional and optimized for maximum traction.

• DSG & Manual Compatibility: Full CAN bus integration for DSG models allows for sophisticated torque-reduction strategies during shifts, protecting the dual-clutch transmission while enabling faster gear changes.

• OEM Dashboard & CAN Bus: Retains all factory gauges, including the FIS/MFD display, fuel consumption data, and diagnostic protocols.

• Variable Valve Timing (VVT): Complete, high-resolution control over both intake and exhaust cam phasing to maximize the VR6's broad torque curve and improve turbo spool-up.

Performance & Safety Features

• 12-Position Map Switching: Toggle between engine calibrations (boost levels, traction strategies, or fuel types) on the fly using the factory cruise control buttons or an optional 12-position switch.

• Rolling Anti-Lag: Build instantaneous boost while cruising at a steady speed—essential for forced-induction R32 builds during roll racing or track overtakes.

• Flex Fuel Integration: Automatic, real-time mapping adjustments based on Ethanol content (E85). The ECU automatically scales timing, fueling, and boost targets based on fuel quality.

• Proprietary Traction Control: Advanced motorsport logic utilizing individual wheel speed data for superior grip management that far outperforms the factory ESP system.

Technical Specifications

The Ultimate Safety Net

Protect your VR6 with Syvecs' industry-leading Safety Trip logic. The S7Plus monitors critical parameters like fuel pressure, oil pressure, coolant temperature, and individual cylinder knock in real-time. If a sensor value exceeds safe limits—such as a lean spike during high boost—the ECU instantly triggers a safety strategy (fuel cut or boost reduction) to prevent catastrophic engine failure.

FOR MAPPING / CALIBRATION SERVICES CONTACT US HERE
