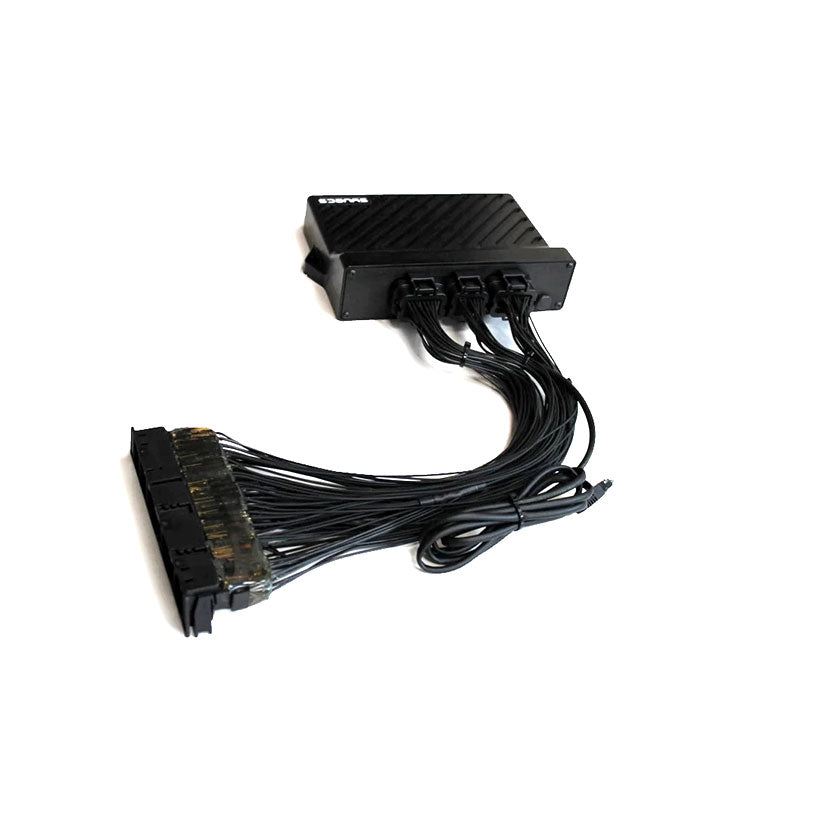

Syvecs S7Plus Plug & Play ECU Kit BMW E46 M3
Syvecs

Syvecs S7Plus Plug & Play ECU Kit BMW E46 M3

In stock
SKU: S7Plus-BE46
No reviews
£3,225.00
Product details
  • SKU S7Plus-BE46
  • Model S7 Plus PNP ECU Kit
  • Make Syvecs

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

Syvecs BMW M3 E46 S7-Plus Plug-in ECU Kit

The Syvecs BMW E46 M3 Kit is the world’s first complete standalone ECU solution for the legendary S54-powered M3. Designed exclusively for manual transmission models, this kit replaces the restrictive factory DME to unlock professional-grade calibration and engine protection. By utilizing the advanced S7-Plus architecture, this PnP kit offers a level of control previously reserved for high-end motorsport, all while maintaining complete integration with the factory chassis.

Whether you are running a high-compression naturally aspirated build or a 1000hp+ turbo conversion, the S7-Plus provides the precision required for the S54’s complex Dual VANOS system and high-revving nature.

Key Technical Specifications

Feature Specification Details
Compatible Platform BMW M3 E46 (Manual Transmission Only)
Engine Support S54B32 (Full Dual VANOS Control)
Base Hardware Syvecs S7-Plus (Triple Processor Architecture)
Lambda Control Dual LSU 4.9 Wideband Support (Sensors sold separately)
Boost Control Closed-loop with launch adjustments (Up to 7-Bar MAP)
Logging 8 Hours internal logging at rates up to 1000Hz
Connectivity Ultra-fast RJ45 Ethernet for live & remote tuning
Safety Systems Configurable trips for Oil Pressure, Temp, and Fuel Pressure

Professional Motorsport Features

  • Full Dual VANOS Control: Precisely manage the S54's variable valve timing for optimal torque delivery and high-end power.

  • On-the-Fly Adjustability: Toggle between 12 different engine maps, boost levels, and traction settings via a 12-position rotary switch or factory cruise control buttons.

  • Advanced Traction Control: Replaces the basic factory DSC with a sophisticated strategy based on lateral G, steering angle, and individual wheel speeds with 4 target slip maps.

  • Engine Safety Suite: Continuous monitoring of oil pressure, oil temperature, and fuel pressure with automatic torque reduction or engine shutdown to prevent catastrophic failure.

  • Turbo & Supercharger Ready: Includes Rolling Anti-Lag, Pit Lane Limiter, and support for staged injection (OEM + 6 additional injectors) for forced induction builds.

  • Flex Fuel Integration: Automatically adjust fuel, ignition, and boost levels based on ethanol content for maximum performance on any fuel grade.

Enhanced Driveability & Integration

The Syvecs E46 M3 kit maintains the "factory feel" by keeping your OEM instrument cluster, ABS, and auxiliary systems fully functional. It supports custom Drive-By-Wire (DBW) throttle bodies and features individual cylinder closed-loop knock control, ensuring each cylinder is monitored and protected independently.

FOR MAPPING / CALIBRATION SERVICES CONTACT US HERE
