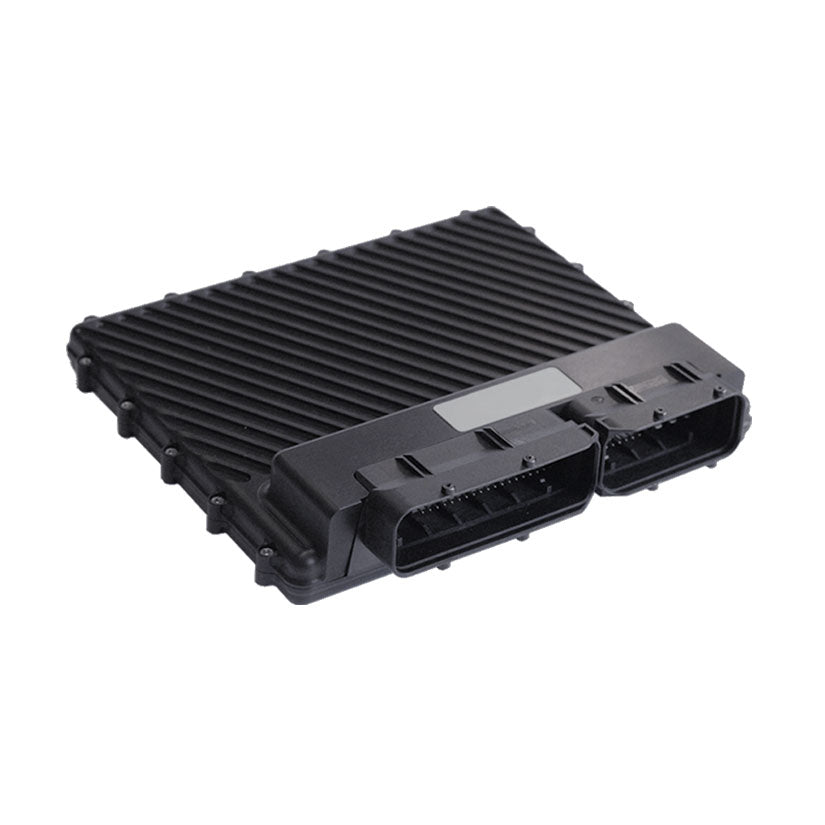

Syvecs S12 Plug & Play ECU Kit Audi R8 V10 2017+

Syvecs S12 Plug & Play ECU Kit | Audi R8 V10 (2017+) Gen 2

The Syvecs S12 Audi R8 Gen 2 Plug & Play ECU Kit is the global benchmark for engine management on the Type 4S platform. Replacing the twin factory Bosch ECUs, the S12 provides absolute authority over the 5.2L FSI V10 engine. It is the definitive choice for world-record-holding Twin Turbo builds, providing the processing power required to manage 2000hp+ while maintaining the sophisticated drivability of a modern supercar.

Built with a massive I/O count and a dedicated FPGA, the S12 handles the Gen 2's high-speed CAN bus network and complex dual-injection fueling with microsecond precision. Whether you are seeking a more aggressive naturally aspirated tune or building a 7-second drag monster, the S12 offers a level of control that redefines the platform.

Master of Dual Injection & DL800 S-Tronic

The 2017+ R8 V10 utilizes a complex fueling and drivetrain ecosystem; the S12 is engineered to master it:

• True Standalone GDI & Port Control: Native, high-speed control over the high-pressure Direct Injection (DI) pumps and injectors, with seamless staging for a secondary set of 10 Port Injectors. This is essential for providing the massive fueling volume required by high-boost twin-turbo applications.

• DL800 Transmission Mastery: Full integration with the Audi 7-speed S-Tronic dual-clutch transmission. The S12 provides advanced torque-management logic, allowing for increased clutch clamping pressures and lightning-fast shifts while protecting the gearbox internals during 200mph+ runs.

• Virtual Cockpit & CAN Integration: Maintains 100% functionality of the factory Audi Virtual Cockpit, ABS, ESC, and steering wheel controls. All factory warning systems and comfort features remain fully operational.

• Quad VVT & Dual DBW: Precise, synchronous control over the twin electronic throttle bodies and the variable valve timing on all four cams, optimizing the torque curve for both low-end response and top-end power.

Performance & Motorsport Features

• 12-Position Map Switching: Toggle through engine calibrations on the fly using the OEM steering wheel Performance buttons. Assign distinct maps for different boost levels, fuels (Pump/E85), or traction strategies.

• Rolling Anti-Lag: Build instantaneous boost while cruising at speed—a requirement for explosive acceleration in twin-turbo V10s.

• Proprietary Traction Control: Advanced motorsport logic utilizing individual wheel speed monitoring, lateral-G, and steering angle for superior grip management that far outperforms the factory ESC.

• Flex Fuel Integration: Automatic, real-time mapping adjustments based on Ethanol content (E85). The ECU scales fuel, ignition, and boost targets dynamically with zero driver input.

Technical Specifications

The Ultimate Safety Net

The S12 acts as a laboratory-grade insurance policy for your V10. It features sophisticated Safety Trip logic that monitors critical parameters across all 10 cylinders. If a sensor value exceeds safe limits—such as a drop in fuel rail pressure, a lean condition, or excessive crankcase pressure—the ECU instantly triggers a safety strategy (boost cut or fuel limit) to prevent catastrophic engine failure.

FOR MAPPING / CALIBRATION SERVICES CONTACT US HERE
