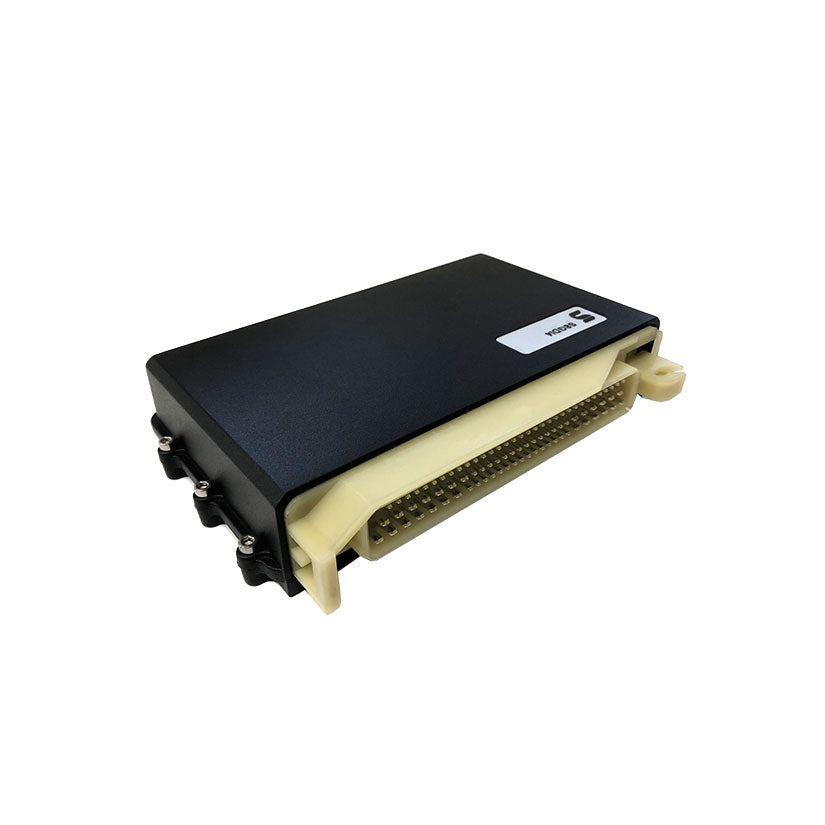

Syvecs S-GDI DF Plug & Play ECU Kit VW Volkswagen TSI

Syvecs SGDI-TSI-DF | VW/Audi TSI Direct Fit ECU Kit

The Syvecs SGDI-TSI-DF is the ultimate "Direct Fit" (DF) standalone engine management solution for the Volkswagen/Audi EA888 Gen 3 TSI engine. Designed specifically for the MQB platform (Golf MK7/7.5 R & GTI, Audi S3/TTS, Leon Cupra), this kit replaces the factory Bosch SIMOS ECU to provide absolute authority over the powertrain.

Built on a triple-processor architecture with a dedicated FPGA, the SGDI hardware manages the high-pressure fuel pump (HPFP) and Direct Injection (GDI) timing with microsecond precision. This is the only solution that provides the resolution and logic required to safely manage the dual-injection (GDI + Port) system found on high-performance TSI builds, ensuring rock-solid stability at power levels exceeding 600hp.

Elite MQB & Drivetrain Integration

The SGDI-TSI-DF is designed to communicate fluently with the sophisticated VAG electronic network:

• Advanced DSG Integration: Seamless communication with DQ250 and DQ381 transmissions. Adjust clutch clamping pressures and torque-reduction strategies to prevent slip during high-torque shifts.

• Haldex AWD Support: Full integration with the 4Motion/Quattro system, ensuring torque distribution is optimized for the increased engine output.

• Dual Injection Mastery: Native, simultaneous control of the high-pressure Direct Injection (DI) and the factory Port Injection (PI). This allows for perfect fuel atomization and staging that "piggyback" units or simple OBD flashes cannot achieve.

• OEM Drive Modes & Dash: Retains full functionality of the factory "Race," "Sport," and "Eco" buttons. All factory gauges, including the Virtual Cockpit, remain fully operational.

Performance & Safety Features

• 12-Position Map Switching: Toggle through engine calibrations (boost, traction, or fuel types) on the fly using the OEM steering wheel buttons or the cruise control stalk.

• Rolling Anti-Lag: Build instantaneous boost while cruising at speed—eliminating turbo lag on upgraded turbochargers for explosive acceleration during roll racing.

• Flex Fuel Control: Automatic, real-time mapping adjustments based on Ethanol content (E85). The ECU automatically scales timing, fueling, and boost targets based on fuel quality.

• Proprietary Traction Control: Advanced motorsport logic utilizing steering angle and individual wheel speeds for superior grip management that far outperforms the factory ESC.

Technical Specifications

The Ultimate Safety Net

The SGDI-TSI-DF acts as a laboratory-grade insurance policy for your engine. It features sophisticated Safety Trip logic that monitors fuel pressure, oil pressure, coolant temperature, and individual cylinder knock in real-time. If a sensor value exceeds safe limits—such as a drop in fuel rail pressure during high boost—the ECU instantly triggers a safety strategy (fuel cut or boost reduction) to prevent catastrophic failure.
