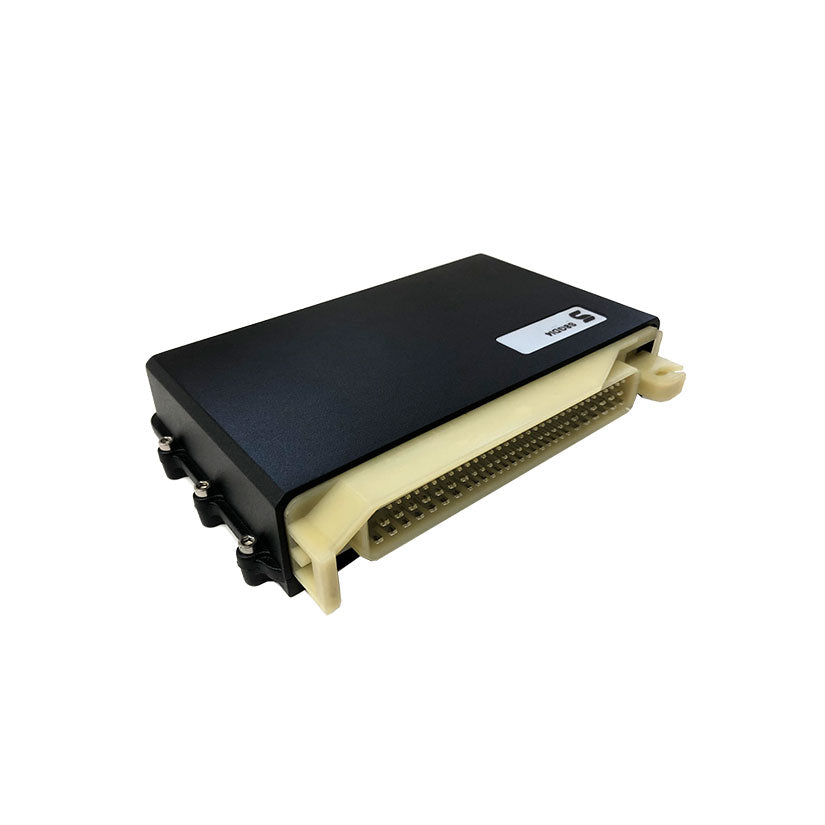

Syvecs S-GDI DF Plug & Play ECU Kit VW Volkswagen TFSI

Syvecs S-GDI VW/Audi TFSI | Direct Fit (DF) ECU Kit

The Syvecs S-GDI VW TFSI Direct Fit Kit is the most advanced engine management solution for the legendary EA113 (Belt-driven) and EA888 Gen 1/2 (Chain-driven) TFSI engines. Designed for the MK5 and MK6 chassis, this kit replaces the factory Bosch MED9.1 or MED17 ECU to unlock total authority over the powertrain.

Built with a triple-processor architecture and a dedicated FPGA, the S-GDI manages the high-pressure fuel pump (HPFP) and Direct Injection (GDI) with microsecond precision. This is the definitive choice for TFSI owners seeking motorsport features like Rolling Anti-Lag, Flex Fuel, and advanced engine safety that traditional OBD flashing or "piggyback" units cannot provide.

Mastery of TFSI Direct Injection & DSG

The earlier TFSI platforms are sensitive to fueling and transmission logic; the S-GDI is engineered to master them:

• GDI & HPFP Authority: Native, high-speed control over the high-pressure fuel pump and direct injectors. This hardware provides the resolution needed to stabilize fuel rail pressure on 500hp+ "big turbo" builds.

• DSG & Manual Integration: Seamless communication with the DQ250 transmission. The ECU provides advanced torque-reduction strategies during shifts to protect the clutches while enabling faster gear changes.

• Haldex AWD Support: Full integration with the 4Motion and Quattro systems ensures that all-wheel-drive logic remains optimized for increased torque loads.

• OEM Dash & CAN Support: Maintains all factory instrument cluster functions, including gauges, warning lights, and diagnostic protocols. Use the factory cruise control buttons to switch between 12 engine maps on the fly.

Performance & Safety Features

• Rolling Anti-Lag: Build instantaneous boost while cruising at a steady speed—eliminating turbo lag on upgraded turbochargers (K04, G-Series, or EFR) for explosive acceleration.

• Flex Fuel Integration: Automatic, real-time mapping adjustments based on Ethanol content (E85). The ECU scales timing, fueling, and boost targets dynamically based on fuel quality.

• Proprietary Traction Control: Advanced motorsport logic utilizing individual wheel speed data for superior grip management, far surpassing the factory ESP/TC.

• Staged Injection Support: Native support for adding secondary port injectors to overcome the fueling limits of the factory DI system on extreme horsepower builds.

Technical Specifications

The Ultimate Safety Net

Protect your TFSI engine with Syvecs' industry-leading Safety Trip logic. The S-GDI monitors critical parameters like fuel rail pressure, oil pressure, and individual cylinder knock in real-time. If a sensor value exceeds safe limits—such as a cam-follower failure causing a fuel pressure drop—the ECU instantly triggers a safety strategy (fuel cut or boost reduction) to prevent catastrophic engine failure.

FOR MAPPING / CALIBRATION SERVICES CONTACT US HERE
