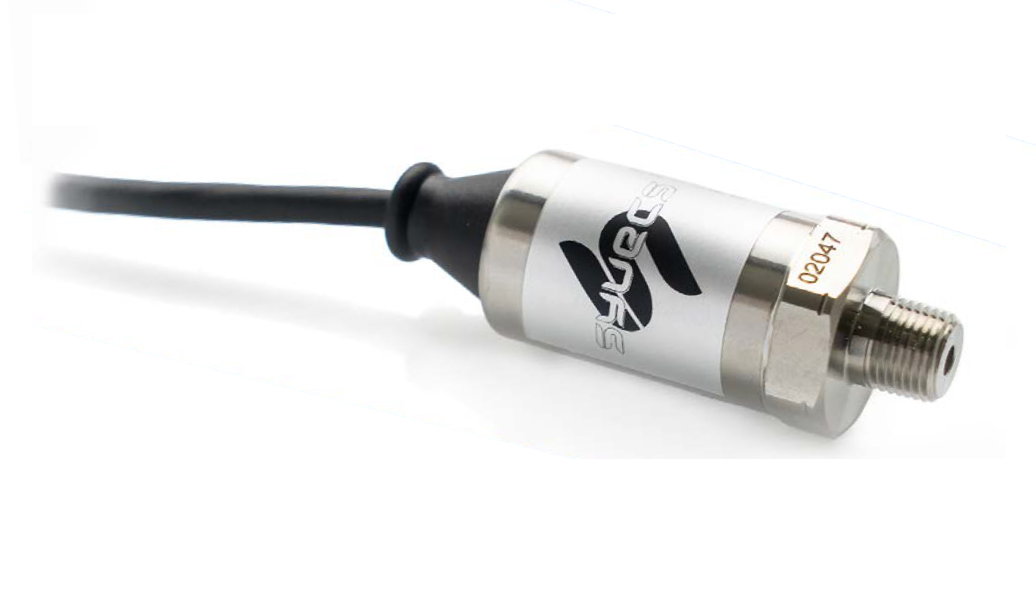

Syvecs Oil Pressure Sensor (10 Bar)

Syvecs Oil Pressure Sensor (10 Bar)

The Syvecs 10 Bar Oil Pressure Sensor is a high-precision, motorsport-grade pressure transducer designed to provide the ECU with critical engine health data. Monitoring oil pressure is the most important safeguard for any high-performance internal combustion engine. This sensor allows the Syvecs ECU to execute advanced engine protection strategies, such as lowering the rev limit or shutting down the engine instantly if oil pressure drops below a safe level relative to engine RPM.

Constructed with a stainless steel sensing element and a compact 22mm body, the sensor is designed to handle the high-vibration environment of an engine block. Its 1/8 NPT thread is the industry standard, allowing for easy installation into most oil galleries, filter housings, or remote sandwich plates.

Performance and Precision Engineering

The sensor is engineered for accuracy and longevity, even when exposed to high-temperature engine oil and aggressive cleaning solvents.

• Stainless Steel Diaphragm: Offers excellent media compatibility and long-term stability compared to cheaper brass sensors.

• High-Speed Response: Provides the microsecond feedback necessary to detect oil cavitation or pump failure before mechanical damage occurs.

• EMI Shielding: Internal electronics are protected against electrical noise from alternators and ignition systems, ensuring a clean 0.5V to 4.5V signal.

• Linear Calibration: Simplifies setup in Syvecs SCal software with a perfectly linear output across the entire pressure range.

Calibration and Wiring Data

The sensor requires a stable 5V supply from the ECU. For calibration in SCal, you can use the built-in linear pressure sensor tool or manual table entry.

Voltage to Pressure Scaling:
0.50V = 0 Bar (0 PSI)
4.50V = 10 Bar (145 PSI)

Electrical Pinout:
Pin 1: Ground (Sensor Ground)
Pin 2: 5V Supply (5V Ref)
Pin 3: Signal Output (Connects to ECU Analog Input)

Technical Specifications
