£750.00
Description Introducing the new Porsche 997.1 / 997.2 Syvecs AWD module which is a standalone AWD/4WD controller designed to control any AWD/4WD Solenoid/Motor to a maximum of 30 Amps via...
Description Introducing the new Porsche 997.1 / 997.2 Syvecs AWD module which is a standalone AWD/4WD controller designed to control any AWD/4WD Solenoid/Motor to a maximum of 30 Amps via...
Sku: SYV-4WD997
Vendor:
Syvecs
Description

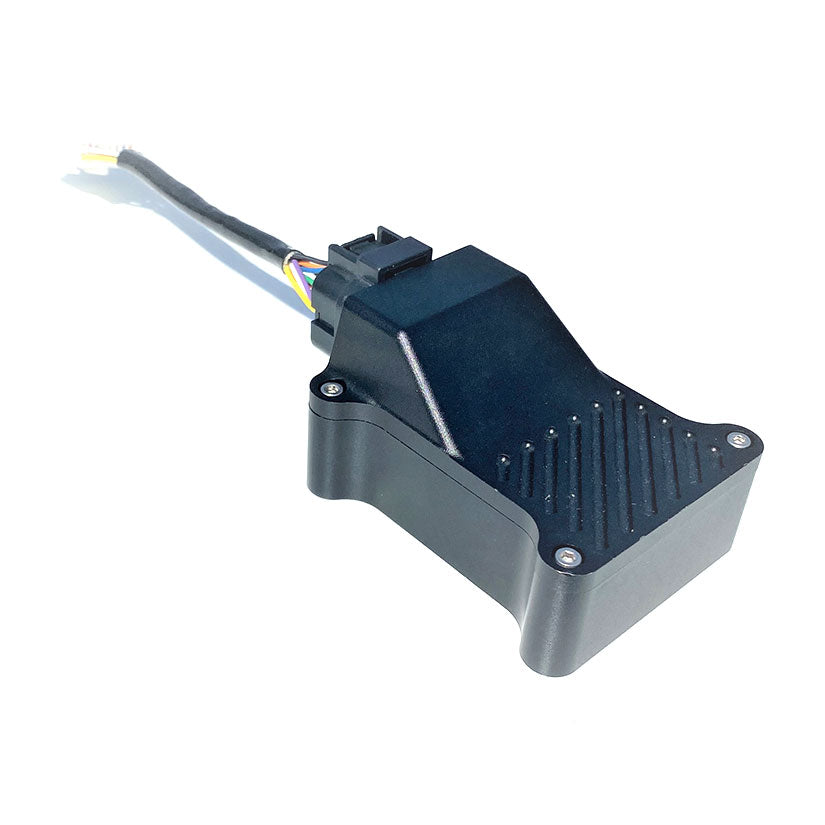

Introducing the new Porsche 997.1 / 997.2 Syvecs AWD module which is a standalone AWD/4WD controller designed to control any AWD/4WD Solenoid/Motor to a maximum of 30 Amps via pin sharing logic.
OEM designed controllers are locked down and not adjustable, but by simply fitting our AWD Module a whole new level of control is available. The unit allows users to optimise control and provide the best performance available from the powertrain.
The 997.1 / 997.2 version of the controller replicates all the OEM CAN information as well as pick up lots of variable from the OEM Can to link into the control strategies like Steering Angle, Brake Pressure, Rpm, Tps, Lateral G, Long G, Speeds, Temperatures and mode switches
Limp Protection options for large slip, high current, high temps which warn the driver but keep awd active unlike the OEM controllers which shut down the outputs which is not ideal with high horsepower!
Works with any Engine management System
The Sport Mode Button on the 997’s is used for Map switching so allows users to be able to change between Awd Select 1, 2, which means all the maps below can be adjusted. You can also enable the burnout mode to be active when the handbrake is present.
With the use of our Scal Software, users can connect to the Device and adjust over 40 maps to adjust the control of the solenoids/motors used in the AWD systems.
Some of the Maps available
4 x Base Duty Tables
4 x Adders with enable maps:
Left Foot Braking
Front Slip
Rear Slip
Centre Slip
4 x Multipliers with enable maps
Steering Angle
AWD Temp
AWD Pressure
AWD Potentiometer
Tyre Diameter adjustment under sensors
2WD/ Burnout Mode
Via Dedication Switched input
Via Can bus Message
Via OEM Functions
Limiters
Maximum Duty
Launch Control Limit
Duty Rate of Change
Decay/Hold Functions
Limp Mode
Over Current Protection
Over Slip Protection
Over Temp Protection
Cooling Pump control
AWD Cooling pump control logic
Datastream
The Syvecs AWD Unit also has a dedicated Can bus transmit area where users can send variables from the AWD to external control units for monitoring or to OEM Canbus system via custom Identifiers and byte structuring
Sensors / Switches
External sensors can be connected to the AWD module ...
