Syvecs 4 Bar Map Sensor

Syvecs SYV-MAP5 5 Bar MAP Sensor and Connector Kit

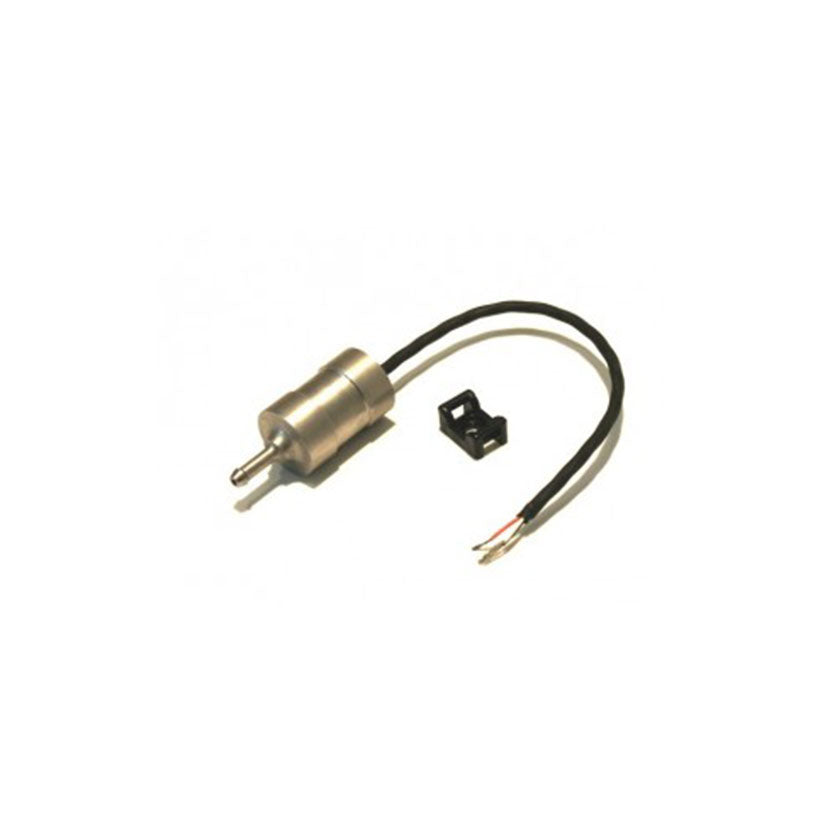

The Syvecs SYV-MAP5 is a motorsport-grade Manifold Absolute Pressure (MAP) sensor designed for extreme boost applications. Capable of measuring up to 4 Bar of positive pressure (58 PSI) plus vacuum, this sensor is the industry standard for high-performance builds. Unlike consumer-grade sensors, the SYV-MAP5 features an ultra-fast 1ms response time, providing the ECU with the high-resolution data needed to manage aggressive boost targets and safety trips.

Housed in a compact, rugged aluminum body, the sensor is available with either a 6mm hose barb or a -3 AN male thread. This kit comes complete with a DTM 4-pin connector kit, including the mating connector and pins for a professional installation.

Performance and Precision Engineering

The SYV-MAP5 is designed to operate in the harshest engine bay conditions while maintaining laboratory accuracy.

• High-Speed Resolution: The 1ms response time allows the ECU to detect boost spikes or vacuum leaks instantly.

• Linear Voltage Output: Features a precise 0.5V to 4.5V output range for easy calibration in Syvecs SCal software.

• Thermal Stability: Engineered to maintain accuracy from -40C to +125C.

• IP67 Rated Protection: Fully sealed against moisture, oil, and fuel vapors.

Calibration Data and Pinout

For seamless integration into your Syvecs calibration, use the following technical data:

Voltage to Pressure Scaling: 0.50V = 0 mbar (0 PSI) 1.30V = 1000 mbar (14.5 PSI / Atmospheric) 4.50V = 5000 mbar (72.5 PSI / 5 Bar Absolute)

Electrical Pinout (4-Pin DTM): Pin 1: 5V Supply Pin 2: Signal Output Pin 3: Sensor Ground

Technical Specifications

Part Number: SYV-MAP5
Pressure Range: 5 Bar Absolute (0-500 kPa)
Response Time: Less than or equal to 1ms
Accuracy: 0.5 percent
FS Burst Pressure: Over 300 percent of Range
Weight: 19g
Included: Sensor, DTM Connector, and Pins
