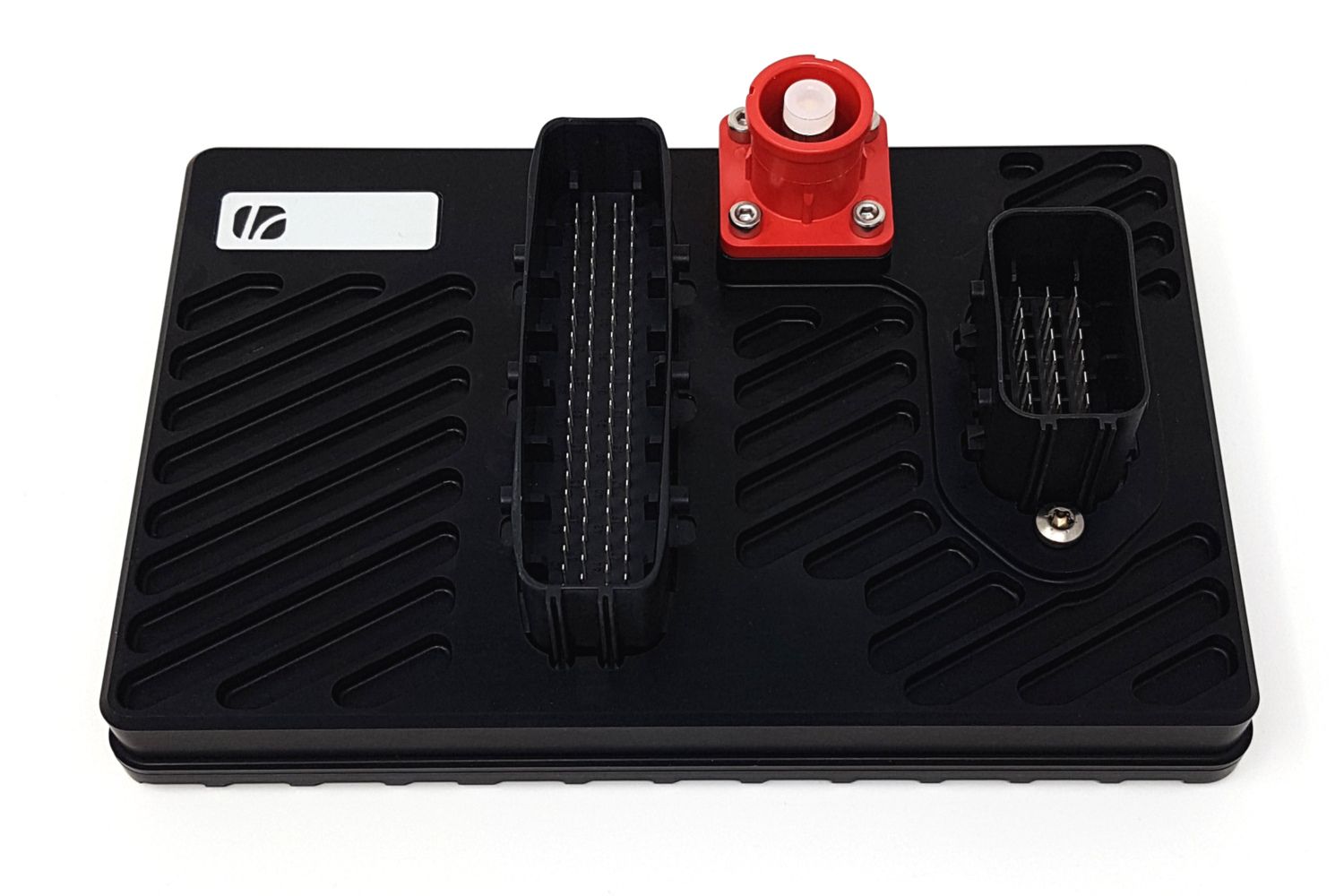

Life Racing PDUX6B | High-Density Ultimate Intelligent PDU

The Life Racing PDUX6B is the premier solid-state power management solution for elite motorsport and complex engineering projects. Boasting a staggering 64 main power outputs, this unit provides the highest density of control available, allowing you to manage an entire vehicle’s electrical ecosystem—from engine systems and aerodynamics to driver comforts and lighting—all through a single, intelligent hub. Eliminate the weight and failure points of traditional fuses and relays with the world’s most advanced PDM.

Unmatched Output Capacity

The PDUX6B offers 64 protected main channels, providing a level of flexibility that simplifies even the most complex wiring looms:

• 10 Multifunction Outputs: Versatile high-side, low-side, PWM, or H-Bridge drivers (40A continuous, 60A hard-start inrush).

• 10 Dedicated High Side Outputs: 40A continuous capacity for heavy-duty loads like high-flow cooling fans and electric pumps.

• 44 High Side Outputs: 15A continuous capacity for an expansive array of sensors, solenoids, and auxiliary systems.

• Intelligent Driver Protection: Every output features multi-stage in-rush control, thermal monitoring, and short-circuit protection.

• Output Teaming: Support for ultra-high current devices by software-linking multiple channels.

Advanced Control Logic & Simulation

• Schematic Calibration Tool: Design your vehicle’s power strategy using a visual schematic interface. The integrated logic simulation tool allows you to test complex "if-then" scenarios before powering up.

• ECU Slaving: Seamlessly integrate with any Life Racing ECU, allowing the unit’s 16 physical inputs to serve as general-purpose analogue sensor data for the engine controller.

• Parasitic Drain Management: Ultra-low power states with "wake-on-activity" via CAN, physical switches, or a dedicated wake pin.

High-Speed Connectivity Hub

• Dual Ethernet Switch: 2x 100Mbit/s full duplex Ethernet ports enable the PDUX6B to function as a network switch, simplifying high-speed data architecture.

• Triple CAN Bus: 3x CAN 2.0B interfaces ensure zero-latency communication across all vehicle modules.

• Legacy & Specialty Support: Features RS232C serial and LIN Bus interfaces for comprehensive peripheral integration.

Elite Hardware Engineering

• Enclosure: CNC machined aluminium case designed for maximum heat dissipation in high-duty cycle applications.

• Connectors: Dual Leavyseal connectors (113 pins total) plus a heavy-duty Amphenol SurLok Power Stud for the primary battery feed.

• Voltage Flexibility: Available in 12V and 24V variants with a regulated 5V sensor supply and dedicated logic power input.

• Durability: Fully operational in extreme temperatures up to +85°C.

Technical Specifications

PLEASE NOTE:
200A, 350A and 24V / 48V Options Available. Contact us for more information
