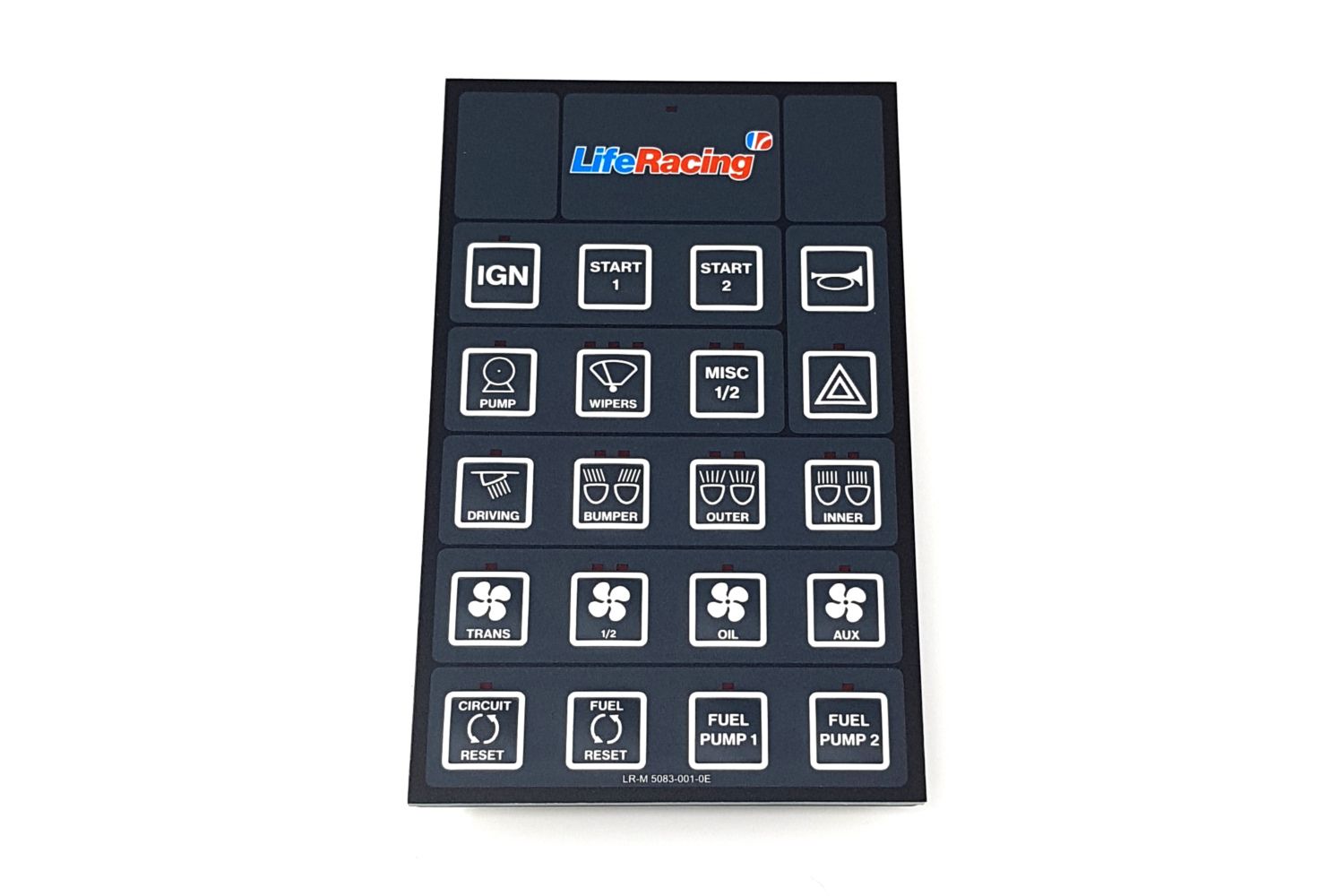

Life Racing PDU Keypad | Professional 24-Button CAN Interface

The Life Racing PDU Keypad is a rugged, microprocessor-controlled interface designed to give the driver total control over vehicle systems. Featuring a 24-switch layout with 20 status LEDs, this keypad integrates seamlessly via CAN bus with Life Racing PDUs and ECUs. Engineered for the rigors of motorsport, it replaces bulky mechanical switches with a sleek, programmable, and splash-resistant solution.

Tactile Control & Visual Feedback

Maximize cockpit efficiency with a layout designed for high-pressure environments:

• 24 User-Configurable Switches: Map any vehicle function—from ignition and fuel pumps to light bars and traction control stages—to a dedicated tactile button.

• 20 Programmable LED Indicators: High-visibility LEDs provide instant confirmation of system status. The brightness is fully adjustable via software to ensure clarity in both direct sunlight and night racing conditions.

Seamless Network Integration

The PDU Keypad is designed to be a "plug-and-play" addition to your vehicle's data network:

• CAN 2.0B Interface: A single CAN connection allows the keypad to communicate with all other controllers on the vehicle bus, significantly reducing wiring complexity.

• Simple Firmware Upgrades: Features a dedicated USB interface for fast and easy firmware updates.

• Wide Voltage Range: Operates reliably from 6V up to 32V with full reverse polarity protection.

Motorsport-Grade Construction

Built to survive the cabin of a rally car or endurance racer:

• Ruggedised Chassis: Housed in a moulded plastic case that is splash-resistant to common motorsport fluids.

• Sealing: Rated to IP65 for protection against dust and water ingress.

• Temperature Resilience: Fully operational in extreme cabin temperatures ranging from -25°C to +85°C.

• Lightweight Efficiency: Weighing just 210 grams, it provides a high-density control solution without the weight penalty of traditional switch panels.

Compact Physical Profile

• Connector: Industry-standard 9-Way D-type connector for reliable signal transfer.

• Dimensions: Slim 170 x 105 x 35 mm profile for easy mounting on dashboards, center consoles, or steering wheel plates.

Technical Specifications
