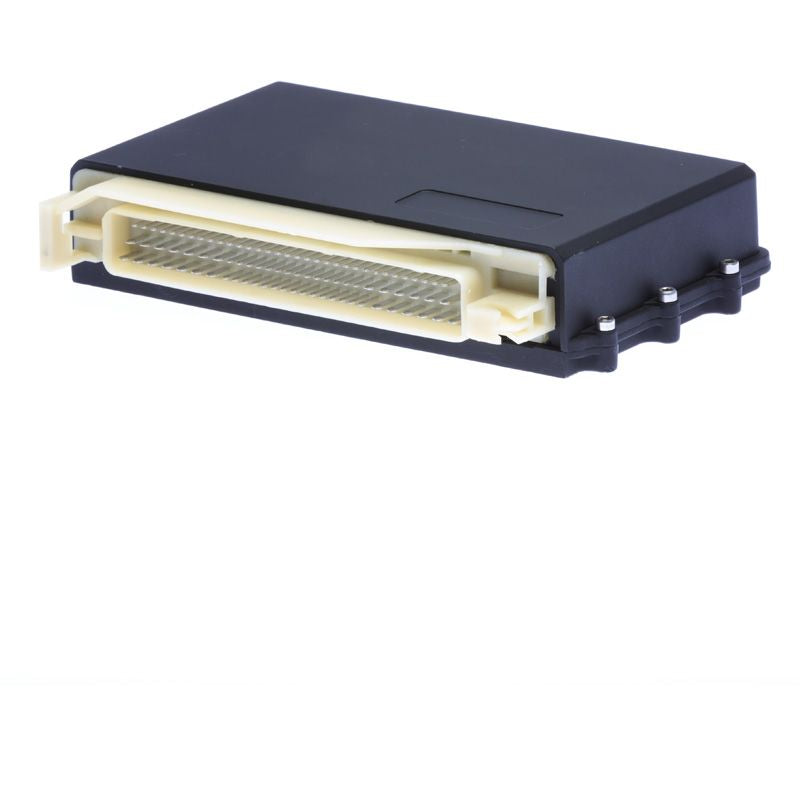

Life Racing F88GDI4 V2 ECU

Processing

• Powerful RISC CPU for advanced strategy execution
• Custom synchronous FPGA processor for engine position tracking up to 25,000rpm

Outputs

• 24 user configurable general purpose Pulse Width Modulated power outputs, including:
• 4 ignition coil outputs IGBT or TTL (Software configurable)
• 12 general PWM/Port injector outputs
• 4 dedicated GDI injector drive outputs (Software configurable power settings)
• 3 full bridges also configurable as 6 half bridges or 6 PWMs (DbW & HDP-5)

Inputs

• 24 user configurable general purpose analogue sensor inputs, including 16 bipolar, inductive or hall effect speed / engine position inputs
• 5 dedicated inputs, including:
• 2 acoustic knock sensor inputs
• 1 wideband (NTK) lambda sensor interface
• 1 K-type thermocouple sensor interfaces

Interfaces

• 100 MHz full duplex Ethernet for calibration, configuration and data download
• 3 CAN 2.0B interfaces for communication with other controllers or logging systems
• RS232 serial interface for communication with other controllers or logging systems

Memory

• 64MB battery backed internal logging memory
• Ultra Fast data download via Ethernet
• Time/Date stamped data via real time clock

Power Supply

• 6 to 32V input voltage range with reverse polarity protection
• 2 regulated 5V sensor supply output with individual short circuit protection
• 5 separately protected sensor and communication ground inputs

Physical

• 88 Way Bosch / AMP sealed connector
• High pressure die cast black powder coated aluminum case
• Maximum dimension including the connector is 183mm x 125mm x 36mm
• Operating temperature up to +85°C
• Sealed to IP65 (when mated)
• Total mass is 520 grams

Available Upgrade Features

• Adaptive Knock Control
• Diesel Control
• Gearbox Control
• Traction Control
• Custom Security
