Life Racing D5 Dash Pro - V2

In stock
SKU: DIS-A14
Regular price $3,081.00
Product details
  • SKU DIS-A14
  • Model D5 Dash Pro
  • Make Life Racing

Do you have questions about this product?

Ask an expert!

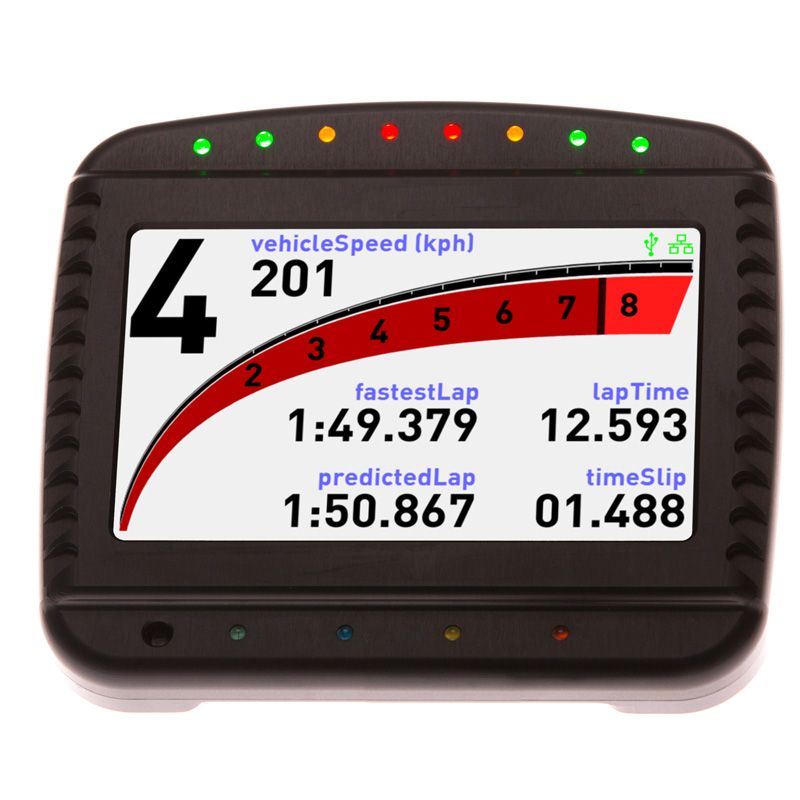

Life Racing D5 Dash Pro - V2 – 5-inch Motorsport Display

The Life Racing D5 Dash Pro - V2 is a compact, slim-profile race display in a CNC-machined black anodised aluminium case, designed for flat-panel mounting. This is the Pro specification, adding unlimited USB data logging to the Club feature set. It connects directly to Life Racing ECUs and PDUs as well as third-party CAN devices.

Key features

  • 5-inch WVGA ultra-bright, anti-glare screen with automatic dimming for day and night stages.
  • 8 variable-intensity shift lights and 4 configurable warning lights built in.
  • 6 analogue + 4 switch inputs for extra sensors and driver controls, with a regulated 5V sensor supply.
  • Twin 100MHz Ethernet for configuration and ECU streaming, plus 2 x CAN 2.0B and RS232.
  • Complex maths (up to 8,000 operations per second) and CANtx to transmit custom CAN data to other devices.
  • Unlimited USB logging to a FAT/FAT32 USB stick, standalone or streaming from a Life Racing ECU, with every physical, CAN and maths channel at its own rate.

Technical Specifications

Feature Specification
Display 5-inch WVGA, anti-glare, auto-dimming
Complex maths Included
CANtx Included
USB logging Included – unlimited
Inputs 6 analogue, 4 switch
Comms 2x 100MHz Ethernet, 2x CAN 2.0B, RS232, USB 2.0
Supply voltage 8–80V, reverse polarity protected
Connector 50-way D-type (kit CON-B04 sold separately)
Dimensions 140 x 123 x 31mm inc. connector
Mass Approx. 395g
