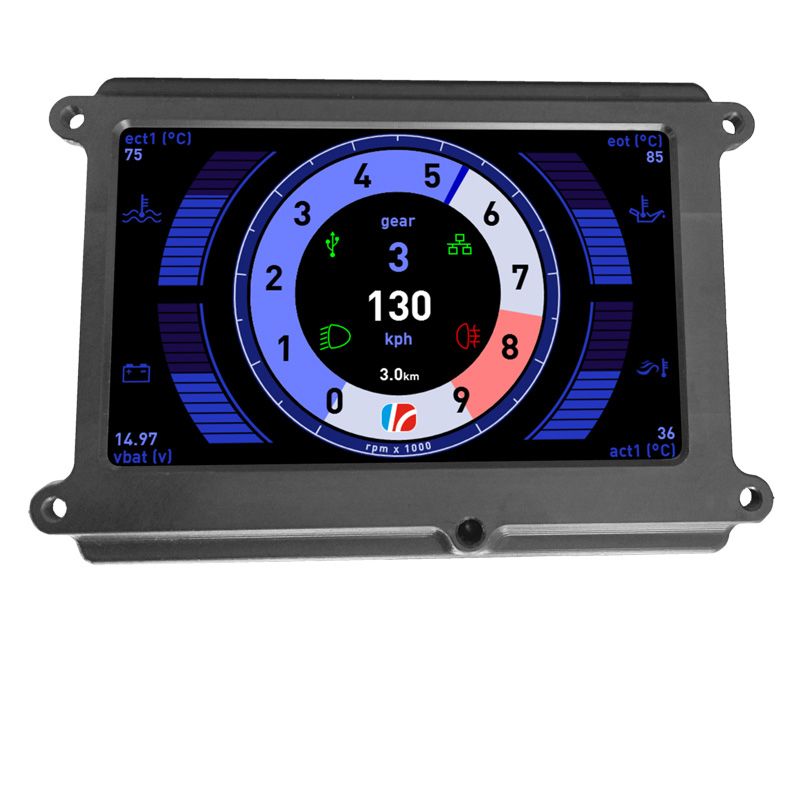

Life Racing D4 Dash Pro | Professional Motorsport Display & Data Logger

The Life Racing D4 Dash Pro is a premium WVGA display and high-speed data acquisition system designed for elite competition. Engineered with a powerful RISC CPU, the D4 Pro provides instantaneous rendering of complex engine data and custom display strategies. Its ultra-slim, CNC-machined aluminium chassis and IP67 rating make it the industry standard for professional race cars, from stage rally to endurance racing.

Elite Visuals & Adaptive Display Technology

• Ultra-Bright WVGA Screen: High-contrast display ensures critical data is visible in the harshest glare of direct sunlight.

• Intelligent Auto-Dimming: A built-in light sensor ensures the display remains perfectly balanced from daylight to dark, reducing driver eye strain during night racing.

• Strategy Execution: The high-speed processor handles advanced math channels and display logic for real-time performance monitoring.

High-Speed Data Acquisition

The "Pro" specification is built around elite data management:

• Unlimited USB Logging: Capture massive datasets directly to a USB stick (FAT/FAT32). Whether it’s a single qualifying lap or a 24-hour race, you have the capacity to log every parameter.

• Ultra-Fast Ethernet Download: 2 Gigabit full-duplex Ethernet ports allow for lightning-fast data offloading and configuration changes.

• Precision Timing: All data is time and date stamped via an onboard real-time clock for accurate post-race analysis.

Advanced Connectivity & I/O

The D4 Pro acts as a central hub for driver interaction and vehicle monitoring:

• Sensor Inputs: 6 user-configurable analogue inputs for auxiliary sensors and 4 dedicated switch inputs for driver controls.

• Network Integration: Dual CAN 2.0B interfaces and an RS232 serial port ensure seamless communication with Life Racing ECUs, PDUs, and third-party telemetry systems.

• Regulated Power: Includes a 5V regulated sensor supply with short-circuit protection.

Ruggedized Professional Hardware

• Chassis: CNC-machined, black anodised aluminium case designed for maximum heat dissipation and vibration resistance.

• Environmental Sealing: Sealed to IP67 standards, providing complete protection against dust and water immersion.

• Ultra-Slim Profile: At just 33.7mm deep, it offers a class-leading form factor for flat-panel dashboard mounting.

• Voltage Flexibility: A wide 6V to 80V input range ensures compatibility with both standard and specialized vehicle electrical systems.

Technical Specifications
