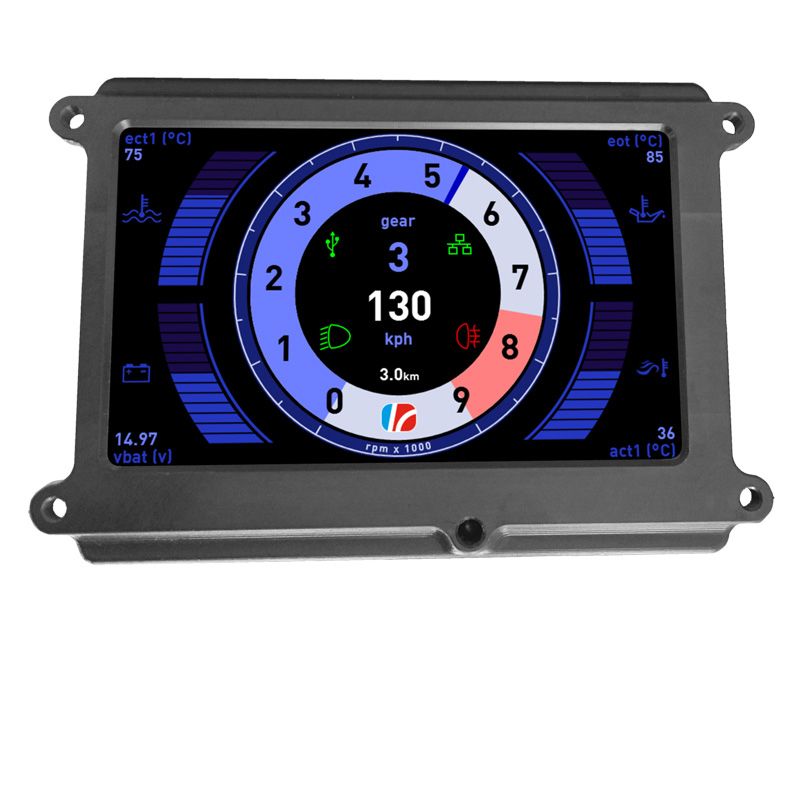

Life Racing D4 Dash Basic | High-Brightness Motorsport Display

The Life Racing D4 Dash Basic is a high-performance WVGA display and data logger engineered for the most demanding cockpit environments. Powered by a high-speed RISC CPU, the D4 offers crystal-clear data visualization from broad daylight to total darkness. Housed in a black anodised, CNC-machined aluminium case, it combines ultra-durability with a class-leading slim profile, making it the perfect solution for flat-panel mounting in space-constrained interiors.

Elite Visuals & Intelligent Dimming

• Ultra-Bright WVGA Screen: Designed for maximum legibility in all lighting conditions.

• Auto Dimming: Features intelligent brightness adjustment to prevent driver glare during night stages while maintaining high contrast in direct sunlight.

• Custom Layouts: Leverage the powerful onboard CPU to execute advanced display strategies and real-time data monitoring.

Comprehensive I/O & Sensor Integration

The D4 is more than just a screen; it acts as a secondary hub for your vehicle's data:

• Analogue Inputs: 6 user-configurable general-purpose inputs for auxiliary sensors.

• Switch Inputs: 4 dedicated switch inputs for driver-controlled functions.

• Sensor Support: Includes a regulated 5V sensor supply with short-circuit protection and a protected ground connection.

High-Speed Connectivity & Storage

• Dual Gigabit Ethernet: Features two 1000Mbps full-duplex Ethernet ports for lightning-fast configuration and data management.

• Dual CAN 2.0B: Seamlessly communicate with ECUs, PDUs, and third-party controllers across the vehicle network.

• USB 2.0 Bulk Logging: Supports unlimited logging memory via USB stick (FAT/FAT32), allowing you to capture massive datasets for post-race analysis.

• Legacy Support: Includes an RS232 serial interface for connection to older logging systems or telemetry.

Rugged Professional Hardware

• Extreme Sealing: Rated to IP67, ensuring the unit is completely protected against dust and water immersion.

• Voltage Versatility: A massive 6V to 80V input range ensures compatibility with various vehicle architectures while providing reverse polarity protection.

• Ultra-Lightweight: Weighing just 215 grams, the D4 provides a professional display solution without adding unnecessary mass.

• Connector: Secure 50-Way D-type connector for reliable signal transfer in high-vibration environments.

Available Upgrade Features

• Pro Spec Upgrade: Unlocks advanced USB logging capabilities for comprehensive data acquisition.

Technical Specifications
