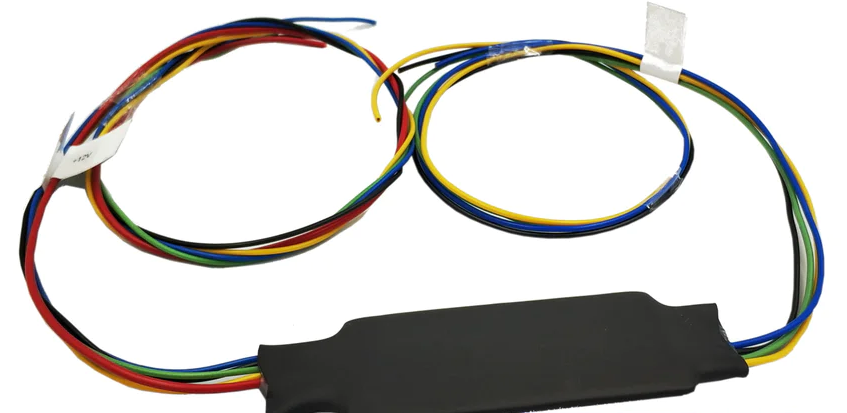

Ecumaster S54 Vanos Adaptor Module (Dual Vanos)

Ecumaster S54 Vanos Adaptor Module (Dual Vanos)

The Ecumaster S54 Vanos Adaptor Module is a critical "box of tricks" designed to enable full control of the BMW Dual VANOS system on the legendary 3.2L S54B32 engine. While many aftermarket ECUs struggle with the high-side drive requirements of the BMW solenoids, this module provides a seamless, external solution. It allows you to run the S54's variable valve timing with an Ecumaster EMU Classic or other engine management systems that lack native high-side VANOS control.

This module is the definitive solution for S54 engine swaps into E30, E36, or other classic chassis. By utilizing this adaptor, tuners can achieve the precise camshaft phasing required for the S54’s broad torque curve and high-RPM screaming power without the need for invasive and risky internal modifications to the factory vanos solenoids.

Technical Authority & Key Features

• Dual VANOS Compatibility: Specifically engineered to manage both the intake and exhaust camshaft solenoids on the BMW S54 engine.

• No Internal Modifications: Eliminates the common and tedious requirement to disassemble the solenoid pack to remove internal diodes or modify wiring.

• High-Side Control Bridge: Converts standard low-side ECU signals into the high-side drive required by the BMW VANOS hardware, ensuring factory-like response and reliability.

• Optimised for S54 Swaps: Designed to work perfectly in conjunction with the Ecumaster S54 PnP wiring looms, simplifying the electrical integration of the M3 powerplant.

• Universal ECU Support: While primarily intended for the EMU Classic, it can be used with any standalone ECU that requires an external driver for high-side VVT control.

• Rugged, Compact Design: Small enough to be tucked into an E46 electronics bin or integrated directly into a custom engine loom.

• Safe Operation: Protects the ECU from the flyback voltage generated by the heavy-duty VANOS solenoids during high-frequency operation.

Technical Specifications
