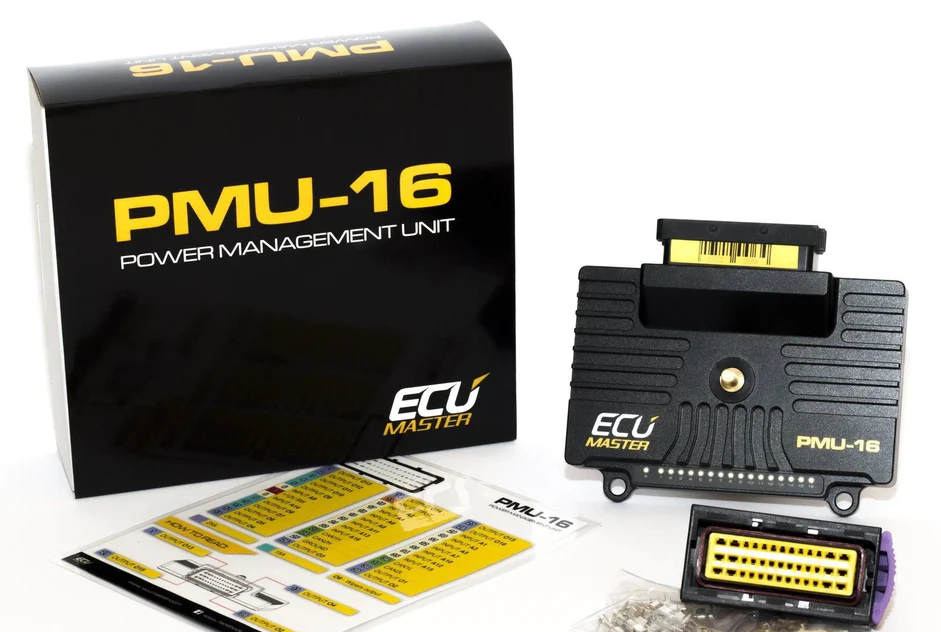

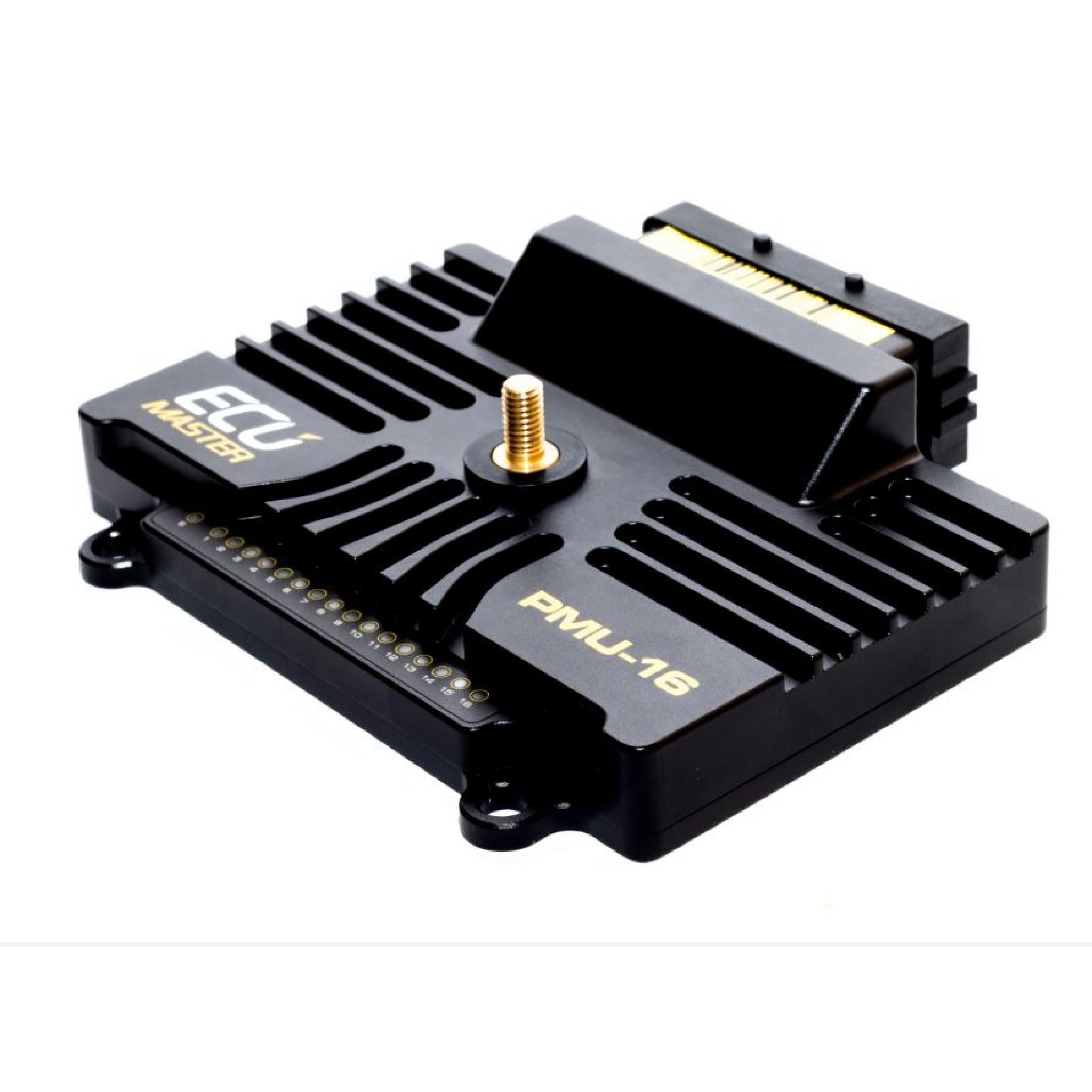

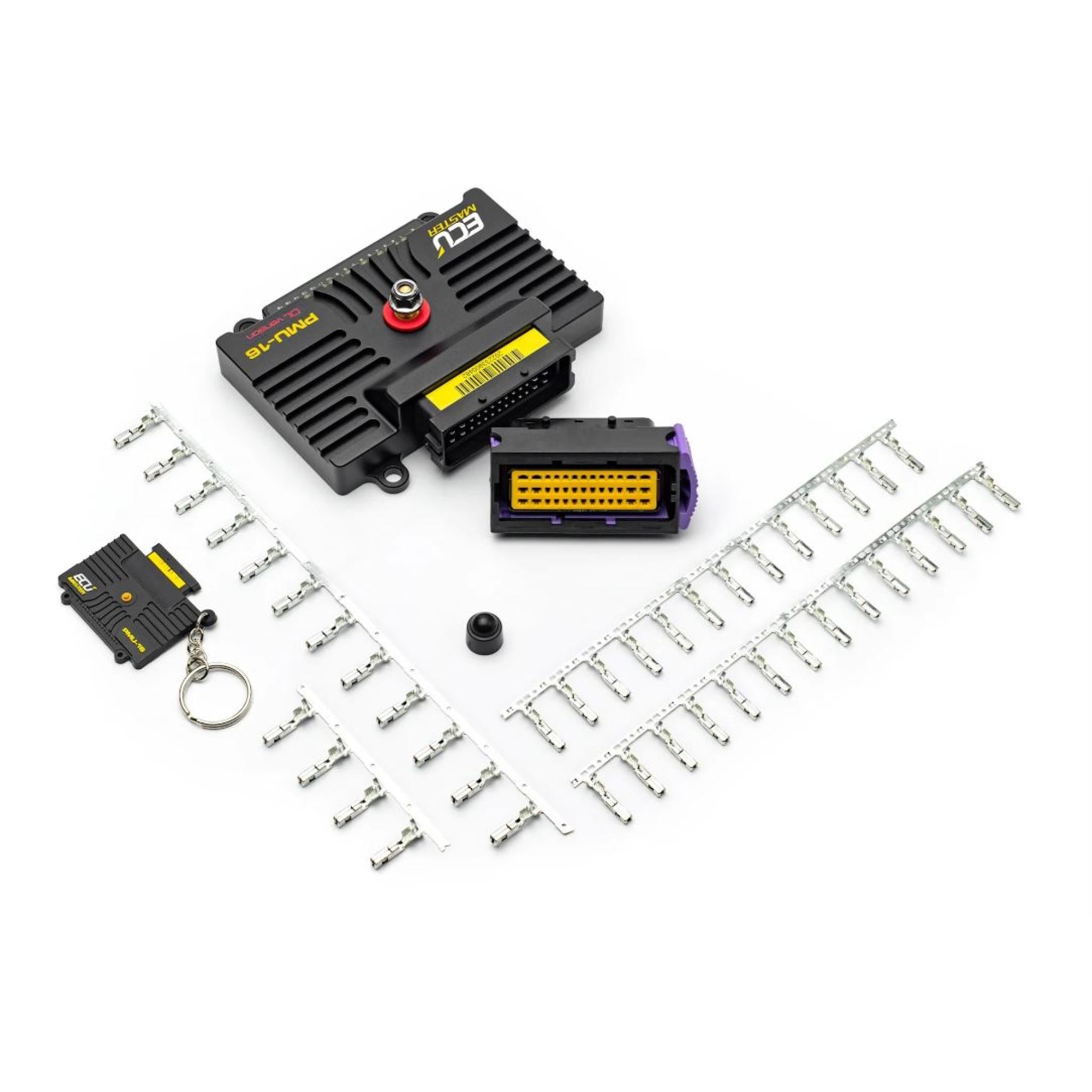

Ecumaster PMU16DL Power Management Unit 16 Data Logging

Ecumaster PMU16DL - Power Management Unit 16 Data Logging

The Ecumaster PMU16DL (Data Logging) is the professional’s choice for intelligent power distribution, combining the robust power management of the PMU16 with an integrated, high-speed data logging suite. This unit is designed to completely replace traditional fuses and relays, offering a solid-state solution that is lighter, more reliable, and infinitely more capable.

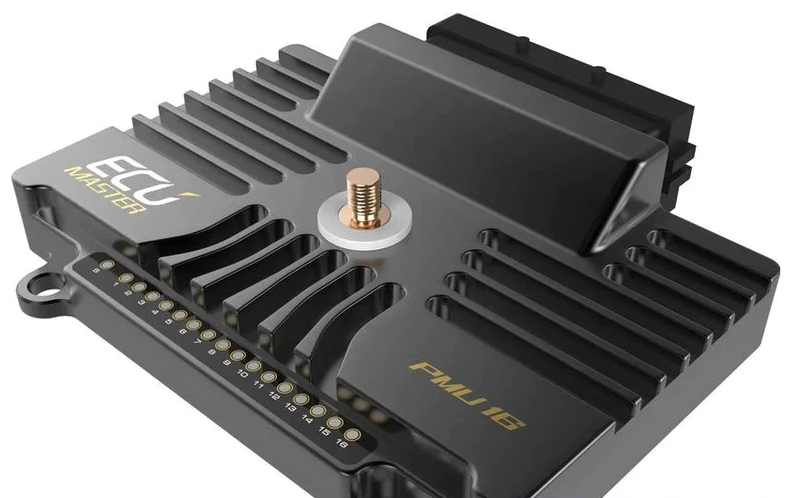

Housed in a rugged CNC-machined aluminium enclosure, the PMU16DL features 256MB of internal flash memory. This allows for the simultaneous logging of every output's status, voltage, and current draw at frequencies up to 500Hz. For race teams and engineers, this provides the granular data necessary to diagnose electrical gremlins, monitor pump health, and optimise cooling strategies through a single, centralised device.

Technical Authority & Key Features

• Built-in 256MB Logger: High-capacity internal memory eliminates the need for external logging modules, capturing vital electrical data directly to the device.

• 16 Smart Outputs: Equipped with 10 x 25A and 6 x 15A high-side outputs. All channels feature self-resetting electronic fuse logic with programmable "retry" attempts.

• Advanced Logic Engine: Define complex control strategies using logical operators (AND, OR, XOR) and math functions based on analog inputs or CAN BUS data.

• Integrated 3D Accelerometer & Gyro: High-fidelity motion sensing for data logging and an automated Inertia Switch (Crash Detection) to kill power to fuel pumps in an impact.

• PWM Control & Soft Start: Fully programmable Pulse Width Modulation on all outputs to manage heavy inductive loads like cooling fans and fuel pumps without voltage spikes.

• Real-Time Diagnostics: 16 bicolour LEDs on the casing provide instant visual feedback for output states, faults, and over-current conditions.

• CAN BUS Keypad Support: Seamlessly integrates with Ecumaster or 3rd party CAN keypads, radically simplifying cabin wiring and reducing loom weight.

Technical Specifications
