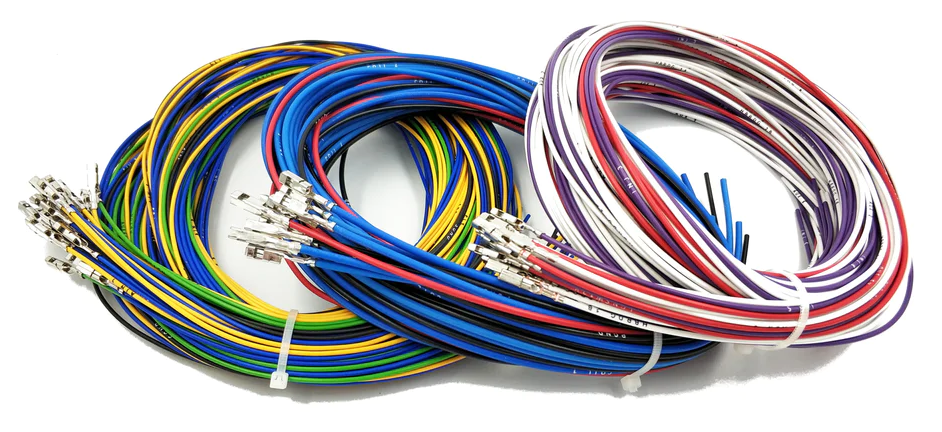

Ecumaster EMU Black Pre-Terminated Wiring

Ecumaster EMU Black Pre-Terminated Wiring Harness – Motorsport Grade

The Ecumaster EMU Black Pre-Terminated Wiring Harness is the ultimate solution for enthusiasts and professional tuners seeking a "Plug and Play" experience for custom engine builds. This high-quality, motorsport-grade loom is specifically engineered to interface seamlessly with the Ecumaster EMU Black ECU, significantly reducing installation time while eliminating the common points of failure associated with hand-built universal harnesses.

Constructed using TXL automotive-grade cross-linked wire and high-temperature heat shrink, this harness is designed to withstand the extreme thermal and mechanical stresses of a high-performance engine bay. Each branch is labeled for effortless identification, ensuring a clean, professional-looking install that meets professional racing standards.

Technical Specifications & Design Authority

• Integrated Connectors: Pre-terminated with high-quality connectors for Bosch LSU 4.9 Wideband, Injectors, Coils, and Sensors.

• Shielded Signal Wires: Critical sensor inputs (Crank, Cam, Knock) are fully shielded to prevent EMI (Electromagnetic Interference), ensuring a clean RPM signal at high boost and high RPM.

• Power Distribution: Includes a dedicated power lead with high-current capacity for Ignition and Injection circuits.

• Expansion Ready: Features auxiliary flying leads for additional inputs/outputs, such as Flex Fuel sensors, Boost Control Solenoids, and Oil Pressure/Temperature.

• CAN-Bus Integration: Pre-wired twisted pair for CAN-Bus 2.0B, allowing instant connection to Ecumaster ADU Digital Dashes or CAN Keypads.

• Protection Rating: High-temperature resistant sleeving protects against oil, fuel, and abrasion.

Key Installation Benefits

By choosing the Ecumaster Pre-Terminated Loom, you gain several technical advantages:

• Reduced Troubleshooting: Eliminates wiring errors, pin-out mistakes, and poor crimp connections that cause "ghost" tuning issues.

• Optimized Grounding: Features a pre-configured grounding logic to prevent ground loops, ensuring the EMU Black's internal 4-Bar MAP and Wideband controller receive stable voltage.

• Universal Compatibility: Designed as a "Flying Lead" style harness at the engine end, allowing it to be easily adapted to almost any 4, 6, or 8-cylinder engine configuration.
