Ecumaster ADU Advanced Display Unit (5" & 7")

Ecumaster ADU Advanced Display Unit (5" & 7")

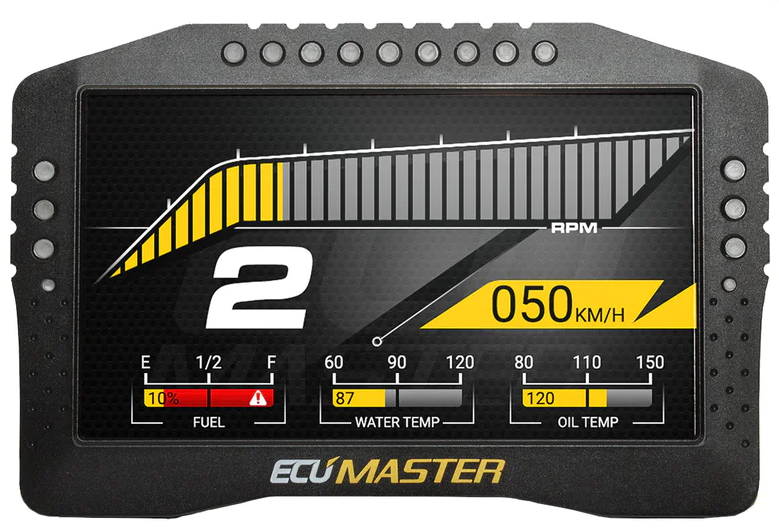

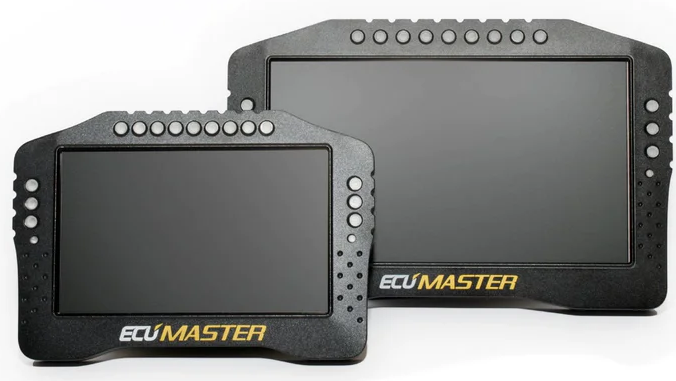

The Ecumaster ADU (Advanced Display Unit) is a high-performance, universal motorsport dash display designed to provide drivers with critical data in a highly legible and customisable format. Available in both 5-inch (ADU5) and 7-inch (ADU7) variants, these units feature ultra-bright, high-resolution anti-glare TFT screens that ensure perfect visibility even in direct sunlight.

More than just a dashboard, the ADU is a powerful data logger and logic controller. Housed in a rugged CNC-machined aluminium enclosure, it is built to withstand the harshest racing environments. With its integrated 32-bit automotive-grade processor and dedicated graphics chip, the ADU delivers fluid gauge movement, instant alarm response, and professional-grade data acquisition.

Technical Authority & Key Features

• Full Customisation: Features 48 programmable pages. Use the intuitive Windows-based software to create bespoke layouts with custom graphics, gauges, and icons.

• Smart Alarms & Overlays: A sophisticated overlay system allows critical alerts (e.g., low oil pressure or high coolant temp) to supersede the current page, ensuring driver awareness.

• 15 Ultra-Bright RGB LEDs: Fully configurable for use as advanced, gear-dependent shift lights or multi-stage visual alarms for engine protection.

• USB Data Logging: High-speed logging of all CAN and analog/digital channels to a USB flash drive at rates up to 500Hz.

• Advanced Lap Timing: Built-in predictive lap timing functionality when paired with a GPS module or IR beacon, including a dedicated "Qualification Mode."

• Comprehensive Connectivity: Features dual independent CAN BUS 2.0B ports, allowing the ADU to communicate with almost any aftermarket ECU (pre-defined streams for Link, Haltech, Motec, etc.) and OEM CAN networks.

• Integrated Sensors: Includes a 3D Accelerometer and Gyroscope for vehicle dynamics analysis and an ambient light sensor for automatic display brightness adjustment.

Technical Specifications

*Note: IP65 rating available on Rev.2 models. Standard units are IP61.
