Ecumaster 8 Key CAN BUS Keyboard

The Ecumaster 8 Key CAN BUS Keyboard is a professional-grade, compact control interface engineered to provide high-reliability command over your vehicle's electrical strategies. Specifically designed to integrate with the Ecumaster PMU16 and EMU Black, this 8-button keypad replaces traditional, bulky switch panels with a streamlined, solid-state solution. By transmitting data over a high-speed CAN BUS network, it allows for a massive reduction in wiring complexity, requiring only four wires for full operation.

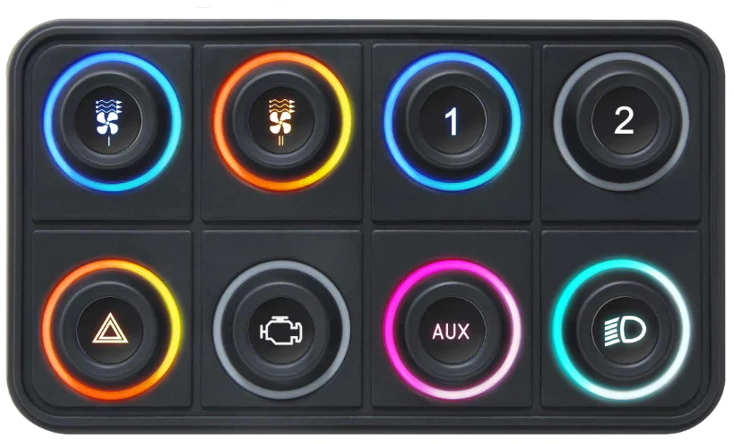

Built for the rigours of competitive motorsport, the unit is IP67 rated, ensuring it remains completely immune to water, mud, and fuel ingress. Each key features independent RGB backlighting, allowing for multi-colour status feedback (Green, Orange, Red) to indicate whether a function is active, standby, or in a fault state. With its unique interchangeable insert system, the 8-key layout can be tailored to any vehicle setup while maintaining a factory-professional finish.

Technical Authority & Key Features

• Advanced CAN BUS Integration: Communicates via CAN 2.0B at selectable speeds (125kbps to 1000kbps), providing rapid response times for mission-critical controls.

• Full RGB Status Feedback: Every button acts as a high-visibility indicator. Use different colours to represent map positions, traction control levels, or pump states.

• Rugged IP67 Construction: The fully sealed enclosure is designed for open-cockpit racers, off-road vehicles, and harsh track environments.

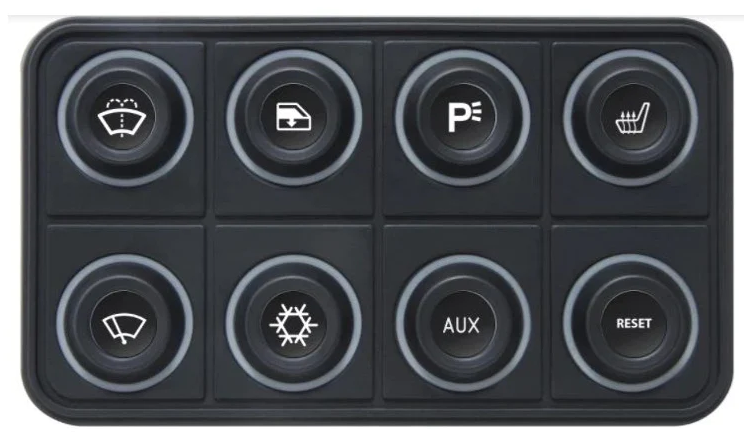

• Interchangeable Laser-Engraved Inserts: Supports a wide range of standard and custom icons. Rearrange your layout at any time without needing a new unit.

• Programmable Key Logic: Fully configurable via the Ecumaster PMU or EMU Black client software. Set buttons as momentary, toggle, or multi-state (cycling) switches.

• Dual Keypad Support: Up to two keyboards can be connected to a single PMU16, allowing for a combined total of 24 or 30 buttons depending on configuration.

• Exceptional Durability: High-tactile switches are rated for over 3 million operations, ensuring consistent performance even through seasons of heavy use.
