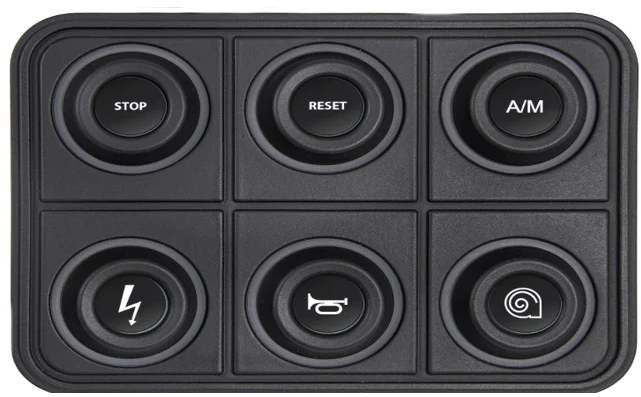

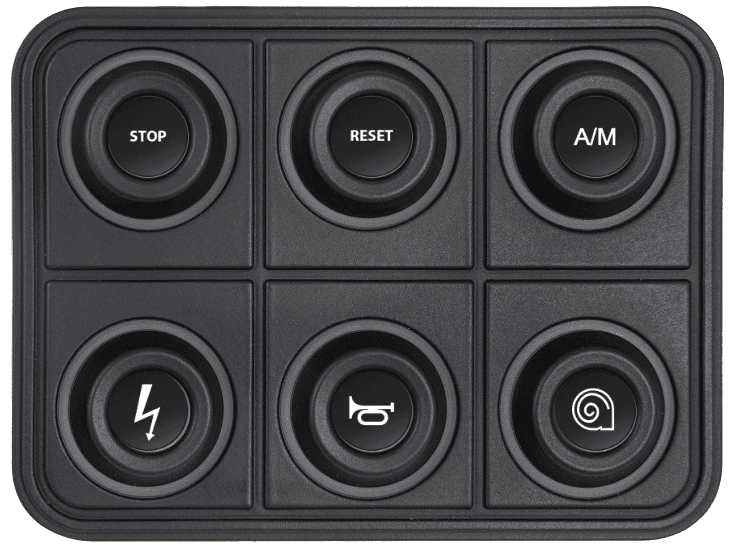

Ecumaster 6 Key CAN BUS Keyboard

Ecumaster 6 Key CAN BUS Keyboard

The Ecumaster 6 Key CAN BUS Keyboard is a professional, compact control interface designed for precision management of your vehicle's electronic systems. Perfect for space-constrained cockpits, this 6-button keypad offers a high-tech alternative to traditional mechanical switches. By utilising a CAN BUS backbone, it allows for a massive reduction in loom weight and complexity, consolidating multiple switch signals into a single 4-wire connection to your Ecumaster PMU16 or EMU Black.

Engineered for the harshest motorsport environments, the unit is IP67 rated, providing total immunity to water, mud, and fuel. Each key is equipped with high-intensity RGB backlighting, allowing for visual feedback of system states—such as using Green for "Armed", Orange for "Standby", and Red for "Fault". With its versatile inline or 2x3 layout options and interchangeable laser-engraved inserts, it provides a bespoke, professional finish for any race, rally, or drift car.

Technical Authority & Key Features

• Simplified 4-Wire Installation: Communicates entirely via CAN BUS, requiring only Power, Ground, CAN High, and CAN Low to control complex engine and power management strategies.

• Full RGB Status Feedback: Programmable backlighting allows each button to act as a status indicator. Colours (Red, Green, Orange) can be configured to represent different software states or sensor thresholds.

• Rugged IP67 Protection: Fully sealed solid-state construction ensures 100% reliability in open-cockpit vehicles and extreme weather conditions.

• Interchangeable Key Inserts: Includes a system of replacement 15mm or 24mm inserts. Customise your 6-key array with a choice of hundreds of laser-marked icons for functions like "Start", "Wipers", "Fans", or "Maps".

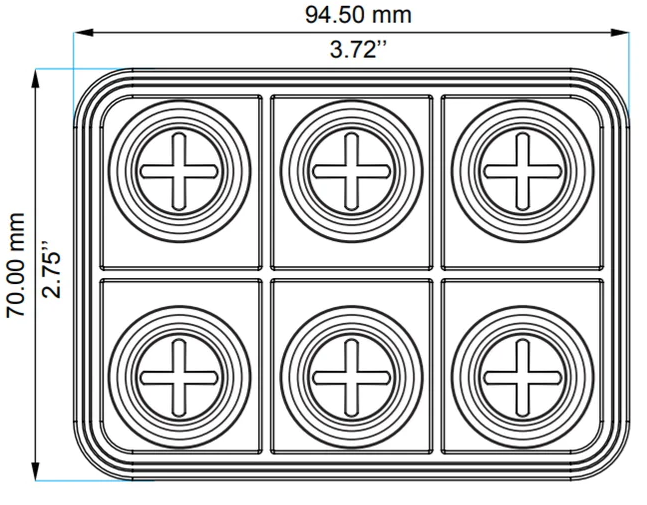

• Versatile Mounting Logic: The compact footprint (available in inline or standard configurations) allows for mounting in tight spaces, such as center consoles, door cards, or custom steering wheel plates.

• Smart Device Synergy: * PMU16 Integration: Use as a primary control interface to trigger power outputs with "soft-start" or PWM strategies.

  • EMU Black Integration: Directly switch between boost targets, traction control levels, or fuel maps.

• Extreme Durability: Tactile switches are rated for over 3 million operations, providing consistent driver feedback even when wearing heavy racing gloves.

Technical Specifications
