Ecumaster 10 Key CAN BUS Keyboard

Ecumaster 10 Key CAN BUS Keyboard

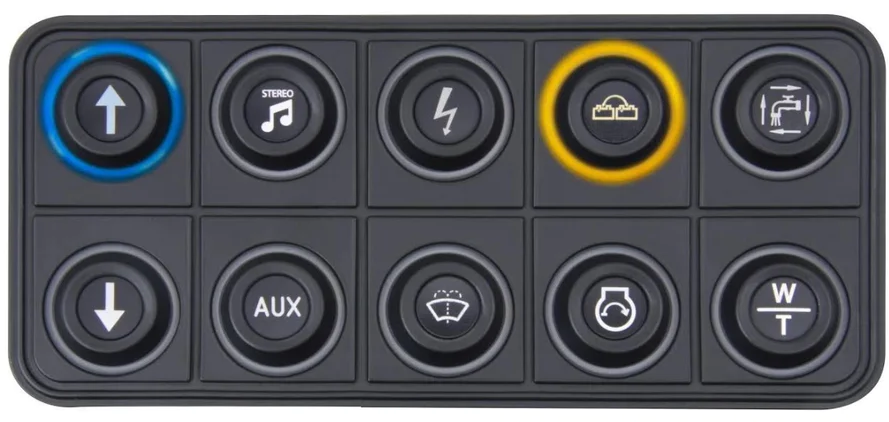

The Ecumaster 10 Key CAN BUS Keyboard is a professional, intermediate-sized control interface that bridges the gap between the compact 8-key and the larger 12-key units. Designed for comprehensive cockpit management, this 10-button keypad (typically in a 5x2 layout) allows for a total conversion of your vehicle's switchgear into a digital CAN stream. By integrating directly with the Ecumaster PMU16 or EMU Black, it provides a centralized hub for managing everything from lighting and wipers to advanced engine strategies like launch control and multi-step boost maps.

Like the rest of the range, the 10-key unit is IP67 rated, making it completely immune to water, mud, and fuel—ideal for open-cockpit rally cars or endurance racers. Each button features high-intensity RGB backlighting, enabling multi-color status indications (Red, Green, Orange, etc.) that can be programmed to reflect real-time system feedback or warning states.

Technical Authority & Key Features

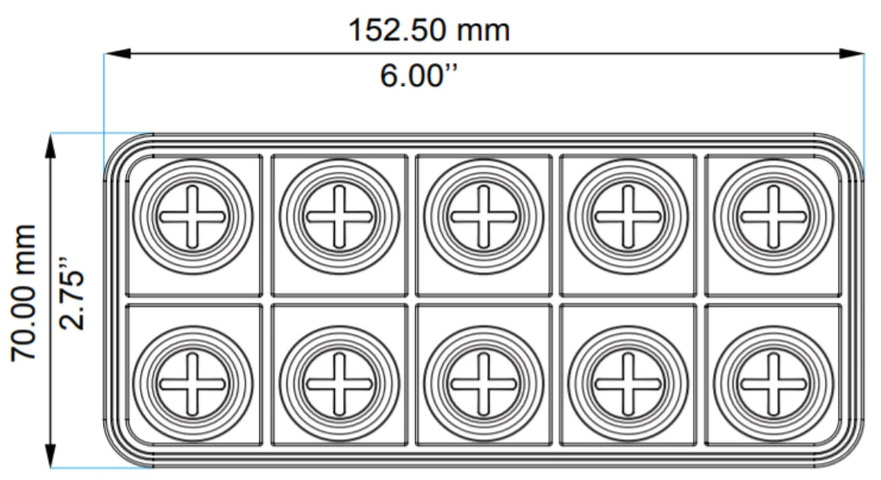

• 10-Button Array (5x2): Provides a high density of controls in a relatively small footprint, allowing for complex driver interfaces without a cluttered dashboard.

• Radical Wiring Simplification: Replaces dozens of traditional wires with a simple 4-wire connection (Power, Ground, CAN High, CAN Low).

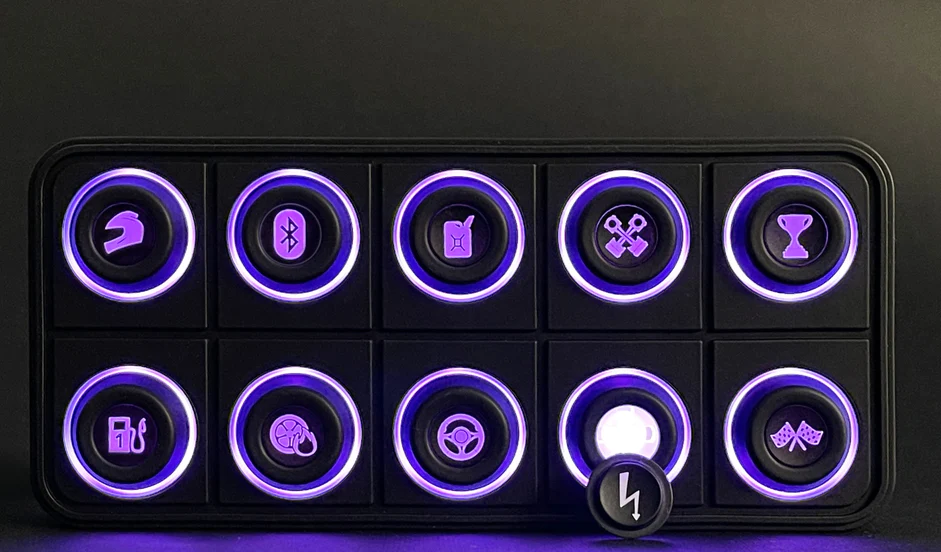

• Full RGB Status Feedback: Every key acts as both a switch and an indicator. Configure colors to change based on button state, sensor thresholds, or PMU logic.

• Rugged IP67 Sealing: Built to withstand the harshest motorsport environments, ensuring consistent operation regardless of weather or debris.

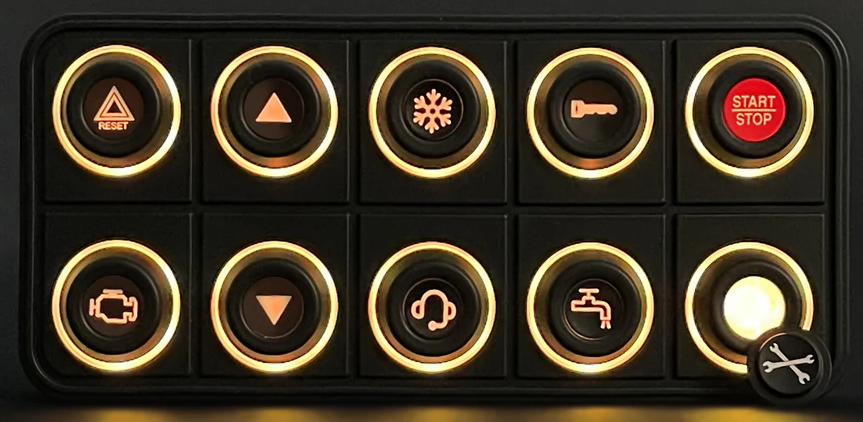

• Interchangeable Laser-Engraved Inserts: Utilizes the standard Ecumaster 15mm/24mm insert system. Rearrange your control layout at any time by simply swapping the physical icons.

• Smart Device Integration:

  • PMU Support: Use up to two keypads per PMU16 for a total of up to 30 buttons.

  • EMU Black Support: Direct integration for switching maps, traction control levels, or diagnostic resets.

• Precision Tactile Response: Switches are rated for over 3 million operations, providing a distinct "click" that is easily felt even when wearing racing gloves.

Technical Specifications
