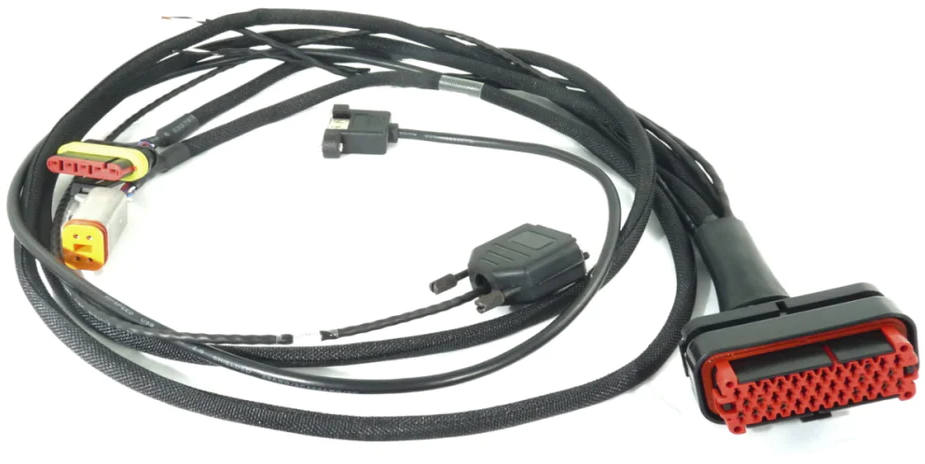

Simplify your motorsport electronics installation with the Ecumaster ADU Pre-Made Wiring Loom. Specifically engineered to remove the complexity of bespoke harness construction, this professional-grade loom is a 100% "plug-and-play" solution for both the ADU5 and ADU7 Advanced Display Units. By utilizing the genuine 35-pin AMPSEAL connector, this harness ensures a secure, vibration-proof connection tailored for the high-demand environments of track, rally, and drift racing.

Wrapped in premium braided cable sleeving for superior abrasion resistance and a clean "motorsport" aesthetic, the loom includes dedicated breakouts for power, data logging, and auxiliary sensors. This harness is the essential bridge between your vehicle's CAN network and your Ecumaster dash, significantly reducing installation time while ensuring signal integrity.

Technical Authority & Key Features

• Genuine AMPSEAL Interface: Utilises the original 35-way automotive connector for a perfect mechanical fit and moisture resistance.

• 1200mm Master Length: Generous cable length provides flexible mounting options for both central dash and steering column installations.

• Integrated Data Logging Port: Includes a dedicated USB port for high-speed logging to an external flash drive, allowing you to capture 500Hz data effortlessly.

• CAN-to-USB Ready: Features a pre-wired communication port for the Ecumaster USB-to-CAN interface, facilitating rapid firmware updates and configuration via PC.

• GPS Module Connectivity: Includes a dedicated branch for the Ecumaster GPS to CAN V2, enabling predictive lap timing and track mapping right out of the box.

• Expansion Breakouts:

  • Switch Fly-leads: Two pairs of unterminated leads for page-swapping and value-resetting switches.

  • Sensor Supply Port: Dedicated breakout offering 3 pairs of +5V and Sensor Ground for auxiliary pressure or temperature sensors.

• High-Quality Materials: Constructed with automotive-grade wire and finished in Raychem-style heat shrink or high-density braided sleeve.
