A Beryllium Copper (Be-Cu) cylinder head modification is a high-performance engine service that replaces standard valve seats and guides with a motorsport-grade copper-based alloy to prevent valve seat recession and optimise thermal dissipation. This upgrade is the definitive solution for high-stress engines where traditional cast-iron seats often sink, lose their seal or fail under extreme heat cycles and competition use.
The Engineering Advantages of Beryllium Copper in Race Cylinder Heads
Standard cylinder head reconditioning often involves simply cutting existing seats. However, for a true race cylinder head modification, the material science of the seat is the foundation of the build. At Bourne HPP, we utilise Beryllium Copper (Be-Cu) because it offers three distinct engineering advantages over standard materials:
-
Superior Thermal Conductivity: Be-Cu transfers heat away from the valve head significantly faster than steel or cast iron. This lowers the operating temperature of the valve, preventing thermal fatigue and allowing for more aggressive ignition timing without detonation.
-
Elimination of Valve Seat Recession: Over decades of use, OEM seats often sink as the material loses density. Be-Cu is incredibly tough and resists the mechanical pounding of high-lift race camshafts to maintain consistent valve lash and port flow.
-
Natural Lubricity and Friction Reduction: Be-Cu valve guides provide excellent natural lubricity. This reduces friction on the valve stems and prevents galling at extreme RPM, ensuring the valvetrain remains stable under load.
Material Synergy: Bourne HPP EN52 Steel Valves
A world-class cylinder head requires a perfect match between the valve and the seat. At Bourne HPP, we manufacture our own premium race valves from EN52 Silicon Chrome steel.
EN52 is a high-tensile alloy specifically chosen for its structural integrity and fatigue resistance at high temperatures. When paired with a Beryllium Copper seat, the heat is pulled out of the EN52 valve face more efficiently than with any other material combination. This synergy significantly extends the life of the valve and prevents the tuliping effect, ensuring your cylinder head maintains maximum compression for longer.

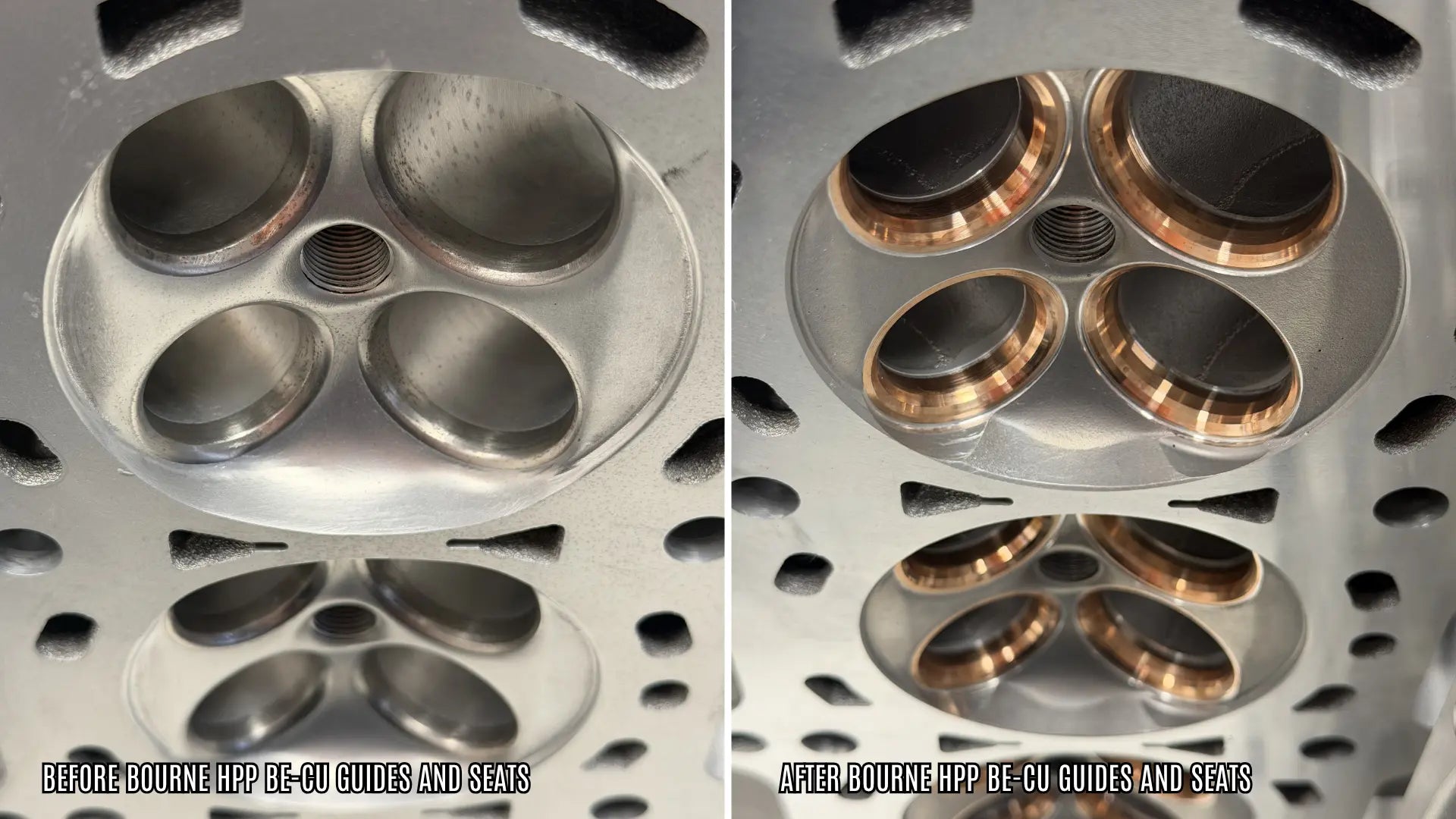

Addressing the Issue of Sunken Valve Seats
We established this specialized service after noticing a consistent trend across a variety of performance heads: valve seat recession. After 20 years or more of heat cycles and previous refurbishments, original seats lose their integrity and recede into the casting.
While we are renowned for our Honda K-Series K20, K24 and S2000 (F20C) cylinder head upgrades, this issue affects almost any high-performance head over time. By machining out the old material and installing Be-Cu inserts, we do not just repair the head; we upgrade it to a motorsport specification utilised in Formula 1, Le Mans and NASCAR.
Technical Comparison: Be-Cu vs. Standard Materials
| Feature | Standard OEM Setup | Bourne HPP Be-Cu Specification |
| Seat Material | Cast Iron (Heat Retaining) | Beryllium Copper (Heat Dissipating) |
| Heat Transfer | Low | Exceptional (Protects Valves) |
| Wear Resistance | Prone to Sinking | Exceptional Impact Resistance |
| Recommended Valve | Standard Steel | EN52 Steel or Titanium |
Frequently Asked Questions (FAQs):
What is the best material for valve seats in a race engine?
Beryllium Copper (Be-Cu) is the gold standard for racing. Its combination of high thermal conductivity and extreme toughness makes it superior to any steel or iron inserts for protecting the valvetrain.
Why are EN52 steel valves used in performance builds?
EN52 Silicon Chrome steel offers high fatigue resistance and thermal stability. It maintains its shape and strength under the extreme pressures of a race-tuned cylinder head, especially when paired with the cooling properties of Be-Cu seats.
Why do valve seats keep sinking in high-performance heads?
Valve seat recession is typically caused by the limitations of the factory seat material under high heat and high RPM. As the seat softens, the valve hammers it deeper into the head casting. Upgrading to a Beryllium Copper seat at Bourne HPP provides a harder, more thermally efficient landing surface that eliminates this issue.
Can I use Titanium valves with Be-Cu seats?
Yes. In fact, it is highly recommended. Titanium valves will gall and seize against standard steel seats. You must use a compatible material like Beryllium Copper to protect the titanium valve face and ensure reliable operation.
Get a Quote for Your Cylinder Head Upgrade
While we specialise in Honda K20/K24 and F20C race head modifications, Bourne HPP offers Beryllium Copper seat and guide installation for any cylinder head upon enquiry.
Contact Bourne HPP today to discuss your bespoke cylinder head requirements.
