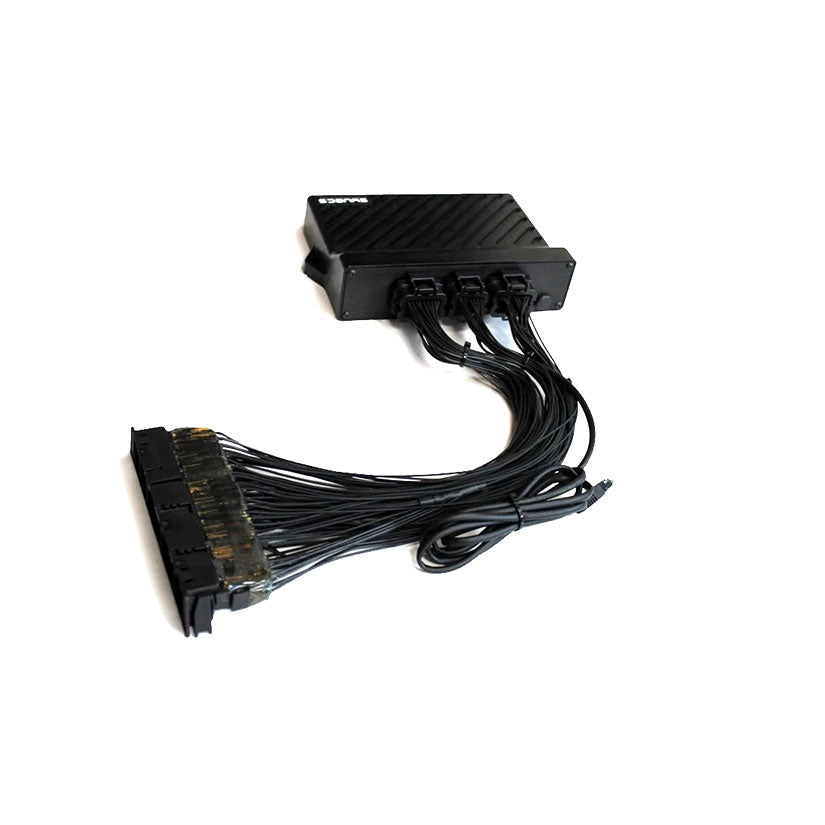

Syvecs S7Plus Plug & Play ECU Kit Toyota Supra MK4 VVTI

Syvecs S7Plus Plug & Play ECU Kit | Toyota Supra MK4 VVTi (A80)

The Syvecs S7Plus Toyota Supra MK4 VVTi Plug & Play ECU Kit represents the absolute pinnacle of engine management for the 1997-2002 2JZ-GTE VVTi platform. While the VVTi engine offers superior low-end torque and spool-up compared to earlier models, its factory ECU is a significant bottleneck. This Syvecs kit replaces the OEM unit to provide total authority over Variable Valve Timing, drive-by-wire (ETCS-i), and high-speed engine logic.

Built on a triple-processor architecture with a dedicated FPGA, the S7Plus manages the VVTi cam phasing with microsecond precision. This ensures that whether you are running a responsive street turbo or a massive 1200whp+ single-turbo setup, your engine timing remains rock-solid across the entire RPM range.

Modern Control for the 2JZ VVTi

The VVTi Supra introduced more complex electronics; the S7Plus is designed to master them:

• Precision VVTi Control: Full, high-resolution authority over the intake cam phasing, allowing you to maximize area under the torque curve and achieve near-instant boost response.

• Drive-By-Wire (ETCS-i) Mastery: Complete control over the factory electronic throttle body, enabling features like programmable throttle maps, pit limiters, and sophisticated traction control.

• Automatic Transmission Integration: Native communication with the factory A340E 4-speed automatic, featuring adjustable shift points and torque-management strategies to handle massive power increases.

• OEM Dash & CAN Support: Retains all factory gauges and warning systems. Use the factory Cruise Control stalk to switch between 12 engine maps for boost, traction, and fuel types.

Advanced Motorsport Features

• Rolling Anti-Lag: Build instantaneous boost while cruising—essential for eliminating lag on large single-turbo 2JZ builds during roll racing.

• Flex Fuel Integration: Automatic, real-time mapping adjustments based on Ethanol content (E85/Pump gas). The ECU automatically scales timing and boost targets based on fuel quality.

• Custom Traction Control: Advanced motorsport logic utilizing individual wheel speed monitoring to manage the 2JZ’s legendary torque output.

• Staged Injection: Native support for secondary injector banks (up to 12 injectors), facilitating massive fueling requirements for high-horsepower builds.

Technical Specifications

Engine Protection & Safety

The S7Plus acts as a high-speed insurance policy for your engine. It features sophisticated Safety Trip logic that monitors fuel pressure, oil pressure, coolant temperature, and individual cylinder knock in real-time. If a sensor value exceeds safe limits, the ECU instantly triggers a safety strategy (fuel cut or boost reduction) to prevent catastrophic engine failure—a must-have feature for any high-value 2JZ build.
