Syvecs S7Plus Plug & Play ECU Kit Honda Civic FD2 Type R 06-11
Syvecs

Syvecs S7Plus Plug & Play ECU Kit Honda Civic FD2 Type R 06-11

In stock
SKU: S7Plus-HCVC1
No reviews
£3,200.00
Product details
  • SKU S7Plus-HCVC1
  • Model S7 Plus PNP ECU Kit
  • Make Syvecs

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

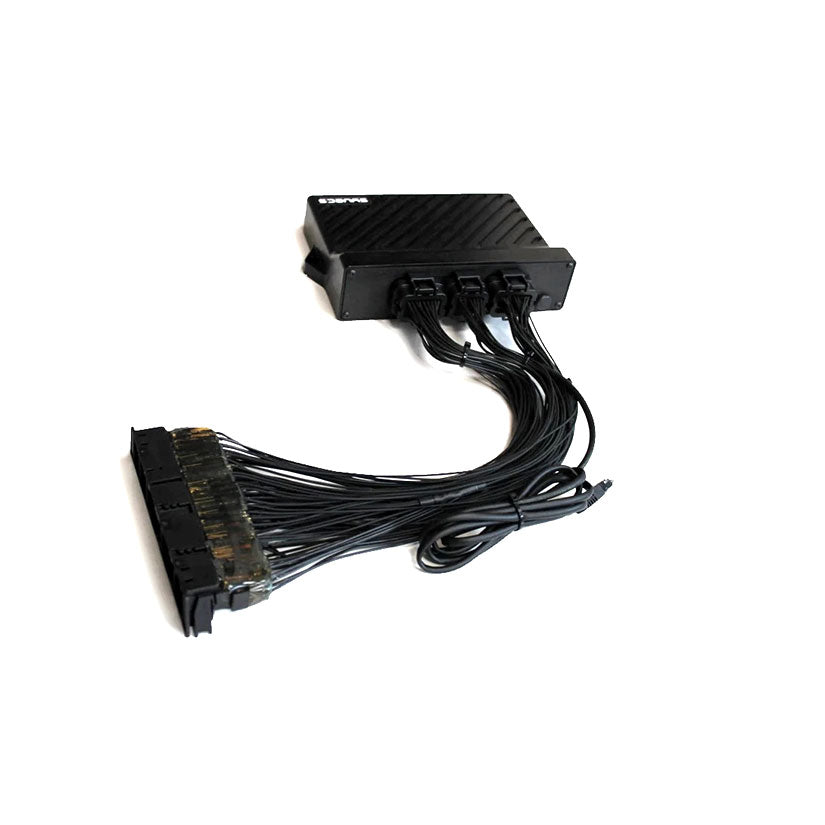

Syvecs Honda Civic Type R FD2 S7-Plus Plug-in ECU Kit

The Syvecs Honda Civic Type R FD2 PnP Kit (2006–2011) is the world’s first complete standalone engine management solution for the JDM FD2 platform. Designed to elevate the high-revving K20A engine to a professional motorsport level, this kit utilizes the flagship S7-Plus architecture to replace the factory ECU entirely. It offers a "no-compromise" approach, maintaining full communication with all factory systems—including the instrument cluster and ABS—while unlocking elite features like Rolling Anti-Lag, Traction Control, and VTEC/VTC optimization.

Whether you're building a dedicated track machine or a high-horsepower forced induction street car, the Syvecs FD2 kit provides the ultimate backbone for engine safety and performance.

Key Technical Specifications

Feature Specification Details
Compatible Platform Honda Civic Type R FD2 (2006–2011)
Engine Support K20A (Full VTEC & Variable Valve Timing Control)
Base Hardware Syvecs S7-Plus (Triple Processor Architecture)
Map Switching 8 Switchable Maps via Steering Wheel Buttons
Boost Control Fully adjustable closed-loop (Supports up to 7-Bar MAP)
Logging 8 Hours internal logging at high-fidelity rates up to 1000Hz
Connectivity Ultra-fast RJ45 Ethernet for Live & Remote Tuning

Professional Motorsport Features

  • Complete VTEC & VTC Control: Fine-tune VTEC engagement and variable cam timing (VTC) for maximum torque and top-end power, ensuring a seamless and explosive powerband.

  • On-the-Fly Adjustability: Use the factory steering wheel buttons to select between 8 engine maps. Instantly change boost levels, traction control aggression, and launch control strategies while driving.

  • Elite Traction & Launch Control: Sophisticated strategies based on lateral G and individual wheel speed monitoring ensure you put the power down effectively in all conditions.

  • Forced Induction Ready: Features Rolling Anti-Lag, Pit Lane Limiter, and Flat Shifting (Gearcut) to maintain boost during gear changes. Supports staged injection for up to 4 additional injectors for ultra-high-power builds.

  • Advanced Engine Safety: Configurable safety trips monitor oil pressure, oil temperature, and fuel pressure. Individual cylinder closed-loop knock control allows the ECU to trigger a full cylinder shutdown in extreme conditions.

  • Flex Fuel Integration: Native support for ethanol blending via Flex Fuel sensors, automatically scaling fuel and ignition parameters based on ethanol content.

Enhanced Driveability & Integration

The Syvecs FD2 kit maintains the factory cruise control and supports any size Drive-By-Wire (DBW) throttle body (e.g., Chevrolet LS7). Tuners can utilize the built-in scope to view any input live at 1000Hz, ensuring the most accurate calibration possible. The ECU also manages both main and sub fuel pumps, with relative fuel pressure monitoring to protect the engine in the event of a fuel system drop.

FOR MAPPING / CALIBRATION SERVICES CONTACT US HERE
