Ecumaster EMU Classic Pre-Terminated Wiring

Ecumaster EMU Classic Pre-Terminated Wiring Harness – Motorsport Grade

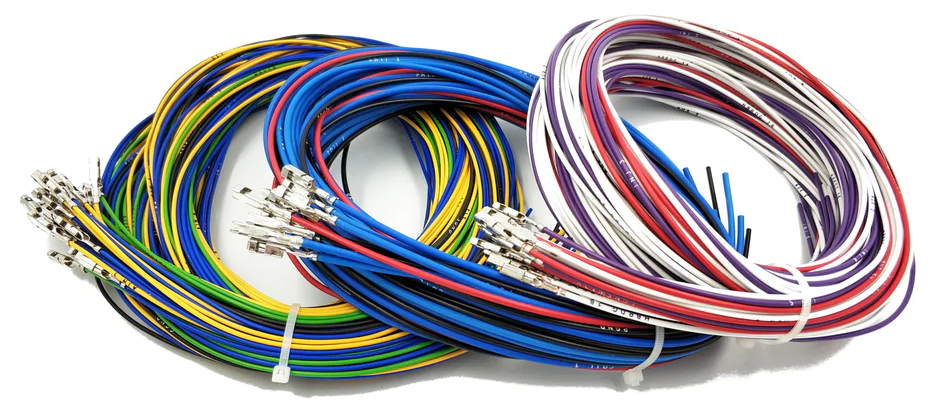

The Ecumaster EMU Classic Pre-Terminated Wiring Harness is the definitive wiring solution for tuners and builders looking to integrate the EMU Classic ECU into their project with professional-level reliability. This pre-terminated loom removes the complexity of pin-out mapping and crimping, providing a robust, high-performance foundation for engine management. Designed specifically for the EMU Classic, it ensures perfect signal integrity for the internal LSU 4.2 Wideband controller and EGT inputs.

Each harness is manufactured using TXL cross-linked polyethylene wire, which is superior to standard automotive wire for its high-temperature resistance and durability against chemicals. With labeled branches and high-quality braiding, this harness transforms a complex standalone installation into a clean, organized, and competition-ready setup.

Technical Specifications & Design Authority

• Shielded Signal Cables: Critical inputs for Crank (VR/Hall), Cam sensors, and Knock sensors are fully shielded to eliminate EMI (Electromagnetic Interference), ensuring a stable sync at high RPM.

• Bosch LSU 4.2 Ready: Pre-terminated with the correct 6-pin connector for the Bosch LSU 4.2 Wideband sensor, utilizing the EMU Classic’s internal controller.

• High-Current Power Circuits: Engineered with sufficient gauge wiring to handle high-duty Fuel Injectors and Ignition Coils (both active and passive).

• Integrated Relay & Fuse Protection: Most versions include a pre-wired power distribution block to protect the ECU and sensitive sensors from voltage spikes.

• Auxiliary Expansion: Includes flying leads for Boost Control Solenoids, Flex Fuel (Ethanol) Sensors, and additional Analog/Digital inputs.

• Environmental Protection: Features high-grade heat shrink and abrasion-resistant sleeving designed for the thermal cycles of a high-performance engine bay.

Key Installation Benefits

By utilizing the Ecumaster EMU Classic Pre-Terminated Loom, you significantly reduce the risk of wiring-related tuning issues:

• Grounding Logic: Pre-configured grounding points prevent ground loops, ensuring the internal 4-Bar MAP sensor and analog inputs remain precise.

• Time Efficiency: Saves dozens of hours in labor compared to building a custom harness from scratch.

• Error Prevention: Color-coded and labeled wires prevent common "pin-swap" errors that can damage ECU hardware or sensors.

• Versatile Fitment: Designed as a "Flying Lead" style harness on the engine side, making it adaptable for 4, 6, 8, 10, or 12-cylinder configurations.
