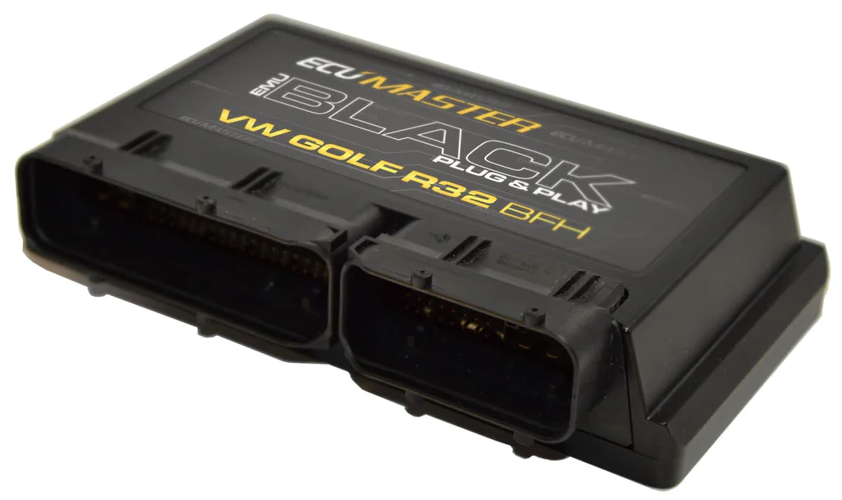

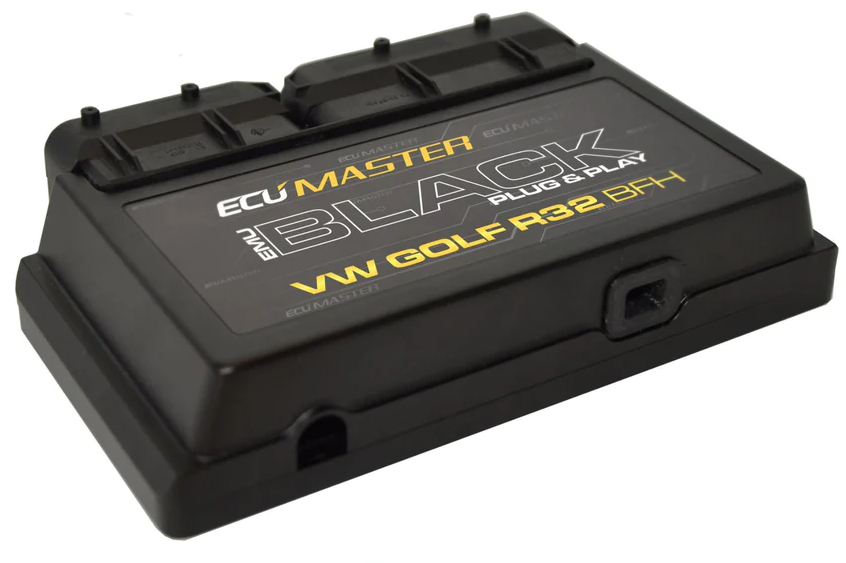

Ecumaster EMU Black VR6 BFH Volkswagen Plug & Play ECU
Couldn't load pickup availability
- SKU E24
- Model EMU Black
- Make Ecumaster
Do you have questions about this product?
Ecumaster EMU Black VR6 BFH Volkswagen Plug & Play ECU
Elevate the performance of your Volkswagen Golf MK4 R32 with the Ecumaster EMU Black VR6 BFH Plug & Play ECU. Specifically engineered for the legendary 3.2L VR6 BFH engine, this standalone engine management system offers a true OEM-fitment solution. Unlike generic adapters, this PnP kit is housed in a bespoke CNC-machined aluminium enclosure that replaces the factory unit entirely, utilising the original wiring loom for a professional, clean installation.
The EMU Black is designed to handle the complexities of the VR6 platform, offering precision control over Drive-by-Wire (DBW), Variable Valve Timing (VVT), and advanced fueling strategies. Whether you are running a high-compression N/A build or a high-boost turbocharged setup, this ECU provides the technical overhead required for world-class tuning and engine protection.
Technical Authority & Key Features
-
Native BFH Integration: Seamlessly plugs into the MK4 R32 factory harness with no additional wiring required.
-
Integrated Drive-by-Wire (DBW): Advanced 3D PID algorithms for ultra-responsive throttle control, supporting auto-blip, anti-lag, and launch control.
-
Built-in Wideband Lambda: Direct support for Bosch LSU 4.2 or 4.9 sensors with an internal controller, ensuring perfect air-fuel ratios without external modules.
-
Dual Channel Knock Sensing: High-fidelity, ignition-event-driven knock detection with 3rd order acoustic filters to safeguard your VR6 under extreme loads.
-
4-Bar MAP Sensor: An on-board manifold absolute pressure sensor eliminates the need for external boost sensors in forced induction applications.
-
VVT Control: Full closed-loop control of the VR6 intake and exhaust cam phasing for optimised torque delivery and power.
-
Flex Fuel Compatibility: Dedicated input for ethanol content sensors, allowing for automatic map blending of ignition, boost, and fuel tables.
-
Motorsport Protection: AECQ100 Grade 2 certified components (operating range -40°C to +105°C) with reverse battery and overvoltage protection.
Technical Specifications
| Feature | Detail |
| Engine Code | VW 3.2 VR6 (BFH) |
| Vehicle Application | Volkswagen Golf MK4 R32 |
| Enclosure | CNC Aluminium, IP60/IP65 Environmental Rating |
| Communication | High-Speed USB, CAN BUS 2.0B, Serial |
| Ignition Outputs | 6 Protected Outputs (Active or Passive Coils) |
| Injector Outputs | 6 Protected Low-Side Outputs (5A) |
| Analog Inputs | 9 Inputs (0-5V, 10-Bit Resolution) |
| Auxiliary Support | 2x EGT (K-Type), Flex Fuel, Oil/Fuel Pressure |
| Boost Control | Open/Closed Loop (Gear & VVT Dependent) |
