Ecumaster Digital Gear Display

Ecumaster Digital Gear Display

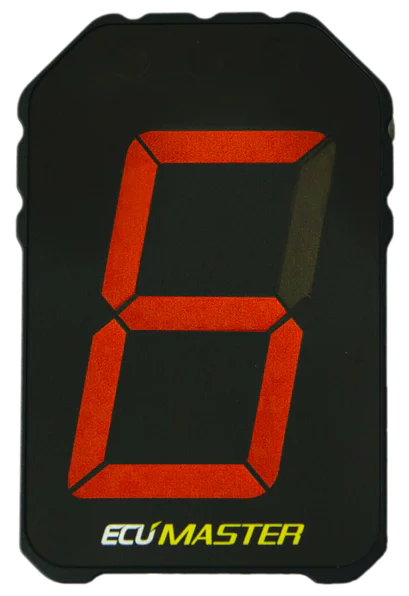

The Ecumaster Digital Gear Display is a high-visibility, 7-segment indicator designed to give drivers immediate confirmation of the current gear—the most critical data point during competitive racing. Unlike basic displays, this unit is a "smart" device capable of calculating gear position internally or receiving it via a high-speed digital stream.

Housed in a compact enclosure, it features a large, bright LED display and three RGB shift light LEDs that are fully customizable. Whether you are using a modern sequential gearbox with a barrel sensor or a standard H-pattern transmission, the Digital Gear Display provides a professional, "factory-race" cockpit feel with 100% reliable data.

Technical Authority & Key Features

• Flexible Input Sources:

  • CAN BUS: Receives gear and RPM data from any CAN-enabled ECU (Ecumaster, MoTeC, Haltech, Link, etc.).

  • OBDII: Can calculate gear position via vehicle speed and RPM directly from the factory diagnostic port.

  • Analog Sensor: Supports 0-5V signals from gearbox barrel position sensors for ultra-accurate sequential monitoring.

• Intelligent Gear Calculation: If no direct sensor is available, the device can calculate the current gear by comparing engine RPM to vehicle wheel speed.

• 3-LED RGB Shift Light: Features three multi-colour LEDs at the top of the unit. Fully programmable for shift points, drive modes, or over-temp/limp mode warnings.

• Auto-Dimming & Brightness: Display brightness is fully adjustable (0-100%) via CAN messages or a physical potentiometer, ensuring perfect legibility from noon sunlight to night racing.

• Overheat Protection: Built-in thermal management automatically scales brightness from 100% at 40° down to 0% at 80° to protect the internal electronics.

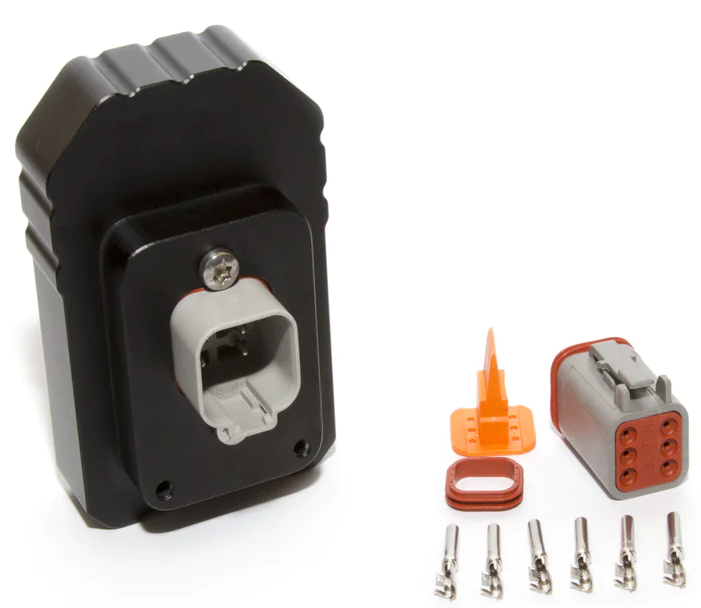

• Rugged Construction: Supplied with the necessary connectors and terminals for a professional, vibration-resistant installation.

Technical Specifications
