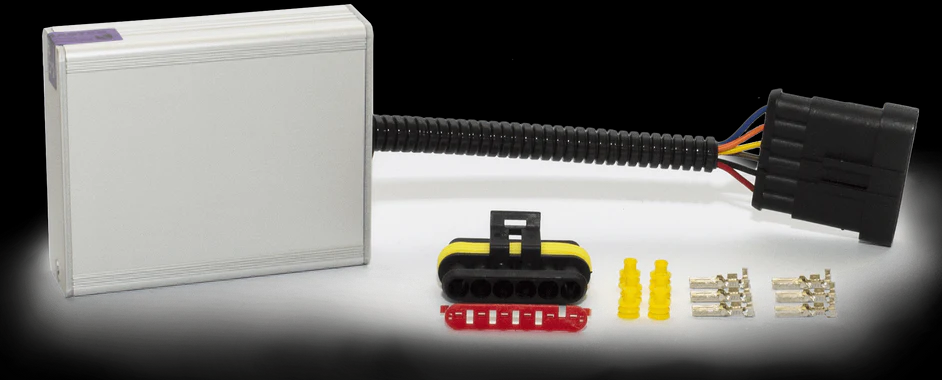

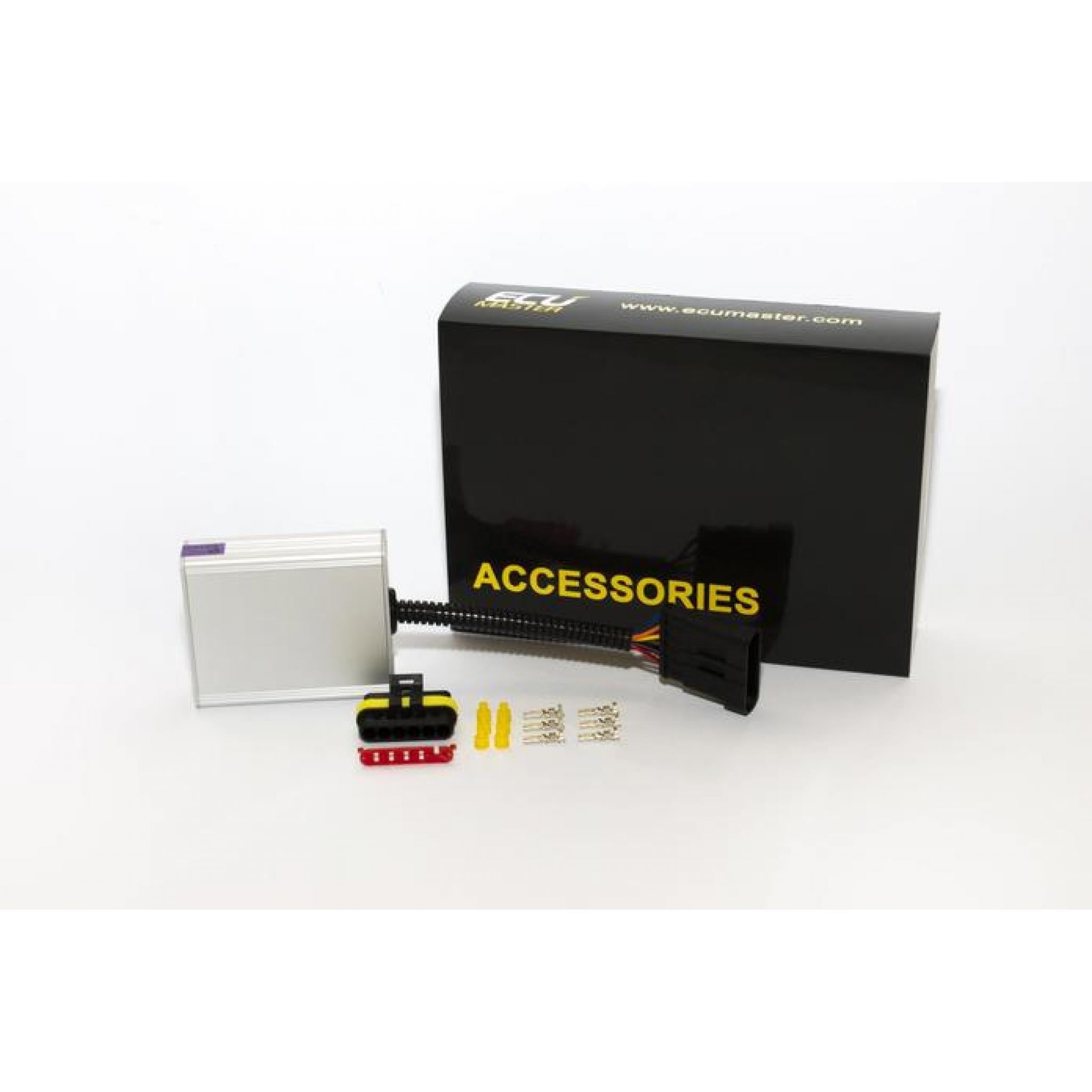

The Ecumaster DBW Module is a specialised external controller designed to enable Drive-by-Wire (Electronic Throttle) functionality for the Ecumaster EMU Classic. While the EMU Black features integrated throttle control, the EMU Classic requires this high-performance H-Bridge module to manage the precise demands of modern electronic throttle bodies. By offloading the high-current switching to this dedicated unit, you gain the ability to run advanced features like idle control, rev-matching, and traction control on platforms originally equipped with cable throttles or early electronic systems.

Built with safety and precision as core priorities, the DBW module utilises a sophisticated dual-microprocessor architecture. This ensures that both the ECU and the module monitor each other constantly; in the event of a signal plausibility error or hardware failure, the system is designed to immediately shut down the throttle motor to prevent "runaway" engine conditions.

Technical Authority & Key Features

• High-Current H-Bridge: Delivering up to 7A continuous (with higher peak bursts), this module provides the necessary power to drive the motors in almost all modern Bosch, VDO, and Denso throttle bodies.

• Single Output Control: Engineered for efficiency, the module requires only one AUX or Injector output from the EMU Classic to control the entire throttle range, preserving valuable ECU pins for other sensors.

• Dual-Processor Safety: Features two independent microprocessors that cross-check data. If the EMU fails, the module shuts down; if the module fails, the EMU cuts engine speed, ensuring a fail-safe environment.

• Precision PID Logic: Works in tandem with the EMU software's DBW Wizard to allow for 3D mapping of throttle response, giving you complete control over "pedal-to-plate" linearity.

• Advanced Features Support: Enables modern motorsport strategies on the EMU Classic, including Anti-Lag (ALS) throttle kick, auto-blip downshifts, and sophisticated idle air management.

• Compact & Rugged Enclosure: Housed in a durable, lightweight casing designed for easy integration into the vehicle’s main wiring harness or tucked neatly near the ECU.

Technical Specifications

Safety Note: The functions associated with the operation of the electronic throttle are intended for motorsport and stationary testing. Always ensure secondary failsafes (such as a master kill switch) are operational.
