CAN Tyre Pressure Monitoring System (TPMS) Club

Ecumaster CAN Tyre Pressure Monitoring System (TPMS) Club

Gain a competitive edge with the Ecumaster CAN TPMS Club, a high-precision, motorsport-grade monitoring system designed to provide real-time data on tyre health. Unlike standard road-going systems that update once per minute, the Club version features a rapid 1-second transmission rate, giving drivers and engineers immediate feedback on pressure fluctuations and temperature changes during high-speed sessions.

This system is engineered for seamless integration with the Ecumaster ADU (Advanced Display Unit) via a single CAN BUS connection. By monitoring both pressure and temperature simultaneously, you can accurately predict hot-pressure requirements, detect slow punctures before they become catastrophic, and optimise your chassis setup based on real-world tyre performance data.

Technical Authority & Key Features

• Real-Time Motorsport Frequency: High-speed 1Hz (once per second) transmission rate when in motion, providing critical data for on-track decision-making.

• Dual Monitoring: Tracks both tyre pressure and internal air temperature for each wheel, allowing for sophisticated compensation calculations.

• Seamless ADU Integration: Pre-configured .canx and .dbc files allow for instant setup on Ecumaster displays, featuring customisable alarms for high/low pressure.

• Selectable Baud Rates: Available in both 500kbps and 1Mbps configurations to match your existing CAN network speed without the need for additional bridges.

• High Accuracy Sensing: Pressure measurement range from 0 to 8000 mbar (8 Bar / 116 PSI) with a precision tolerance of +/- 20mbar.

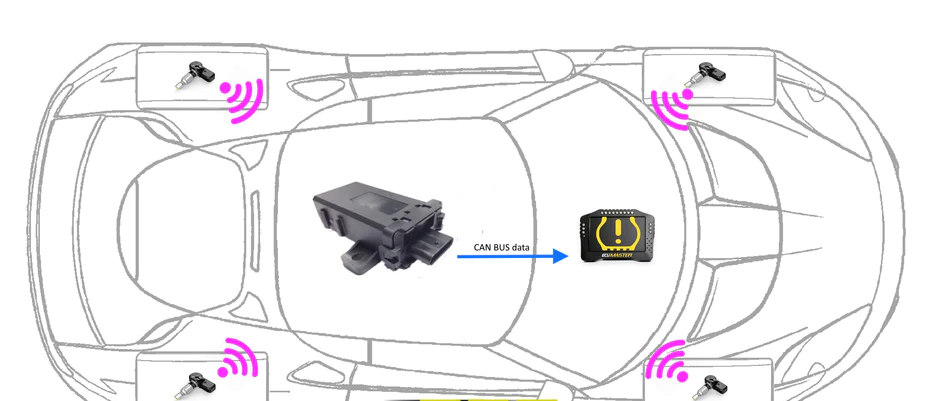

• Robust Wireless Receiver: The compact, lightweight receiver manages the signals from all four sensors and converts them into a digital CAN data stream.

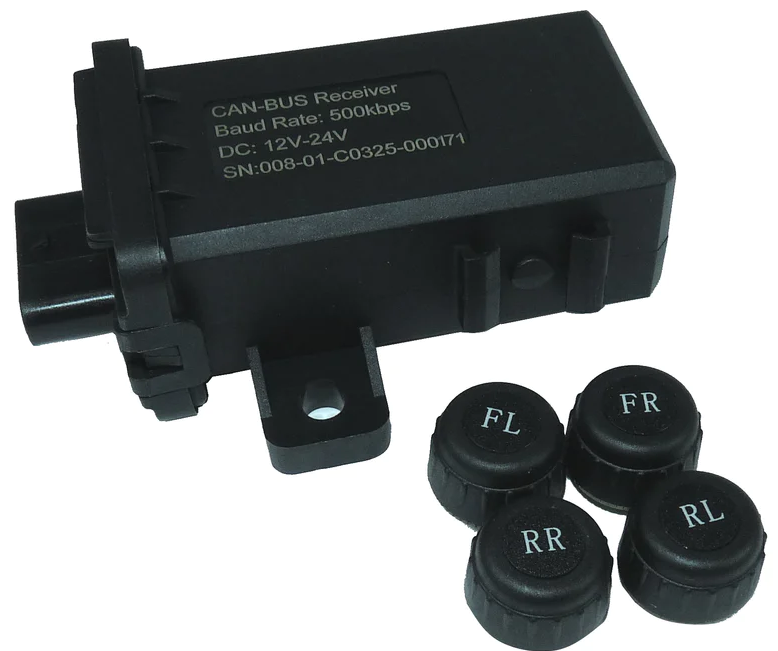

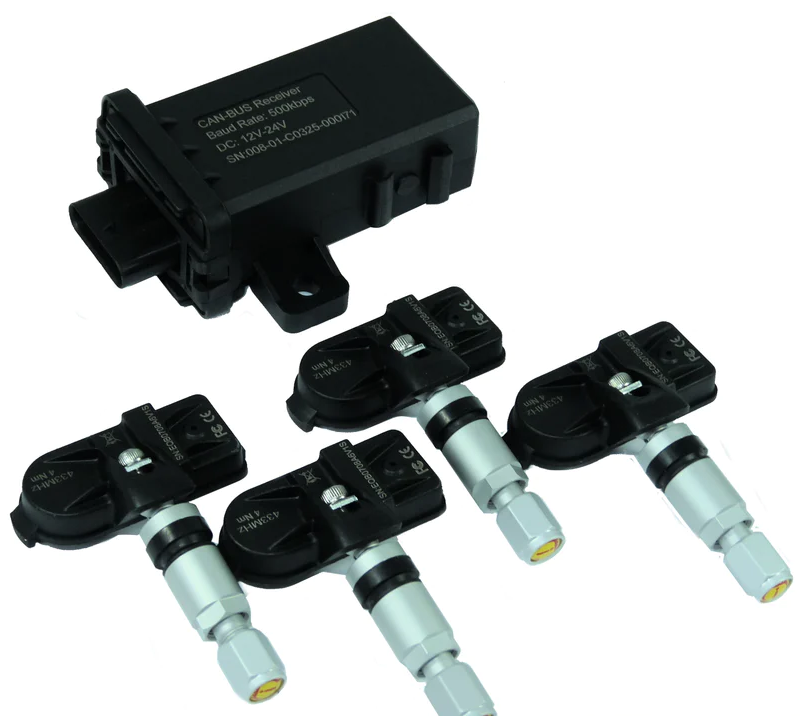

• Flexible Sensor Options: Available with either internal valve stem sensors (maximum security) or external screw-on cap sensors (ideal for rapid wheel changes).

Technical Specifications
