Bourne Alloy Radiator with Oil Cooler Mount

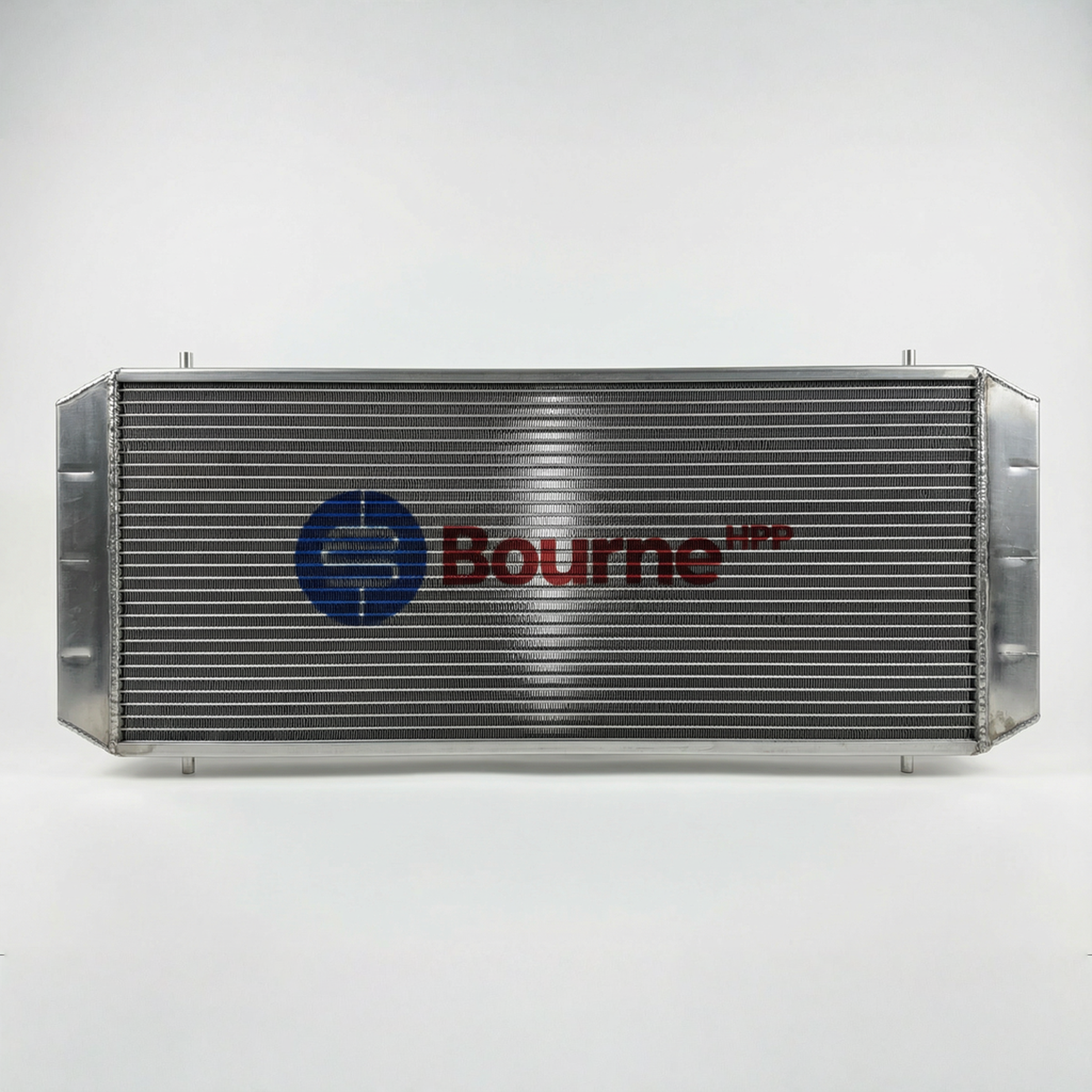

Bourne HPP Alloy Radiator

The Bourne HPP Alloy Radiator is a dedicated motorsport cooling solution designed to replace and outperform aging factory units. Developed specifically for track cars struggling with rising temperatures, it provides a robust upgrade over standard radiators with plastic end tanks, which are prone to bursting under the high pressures and thermal loads of competition.

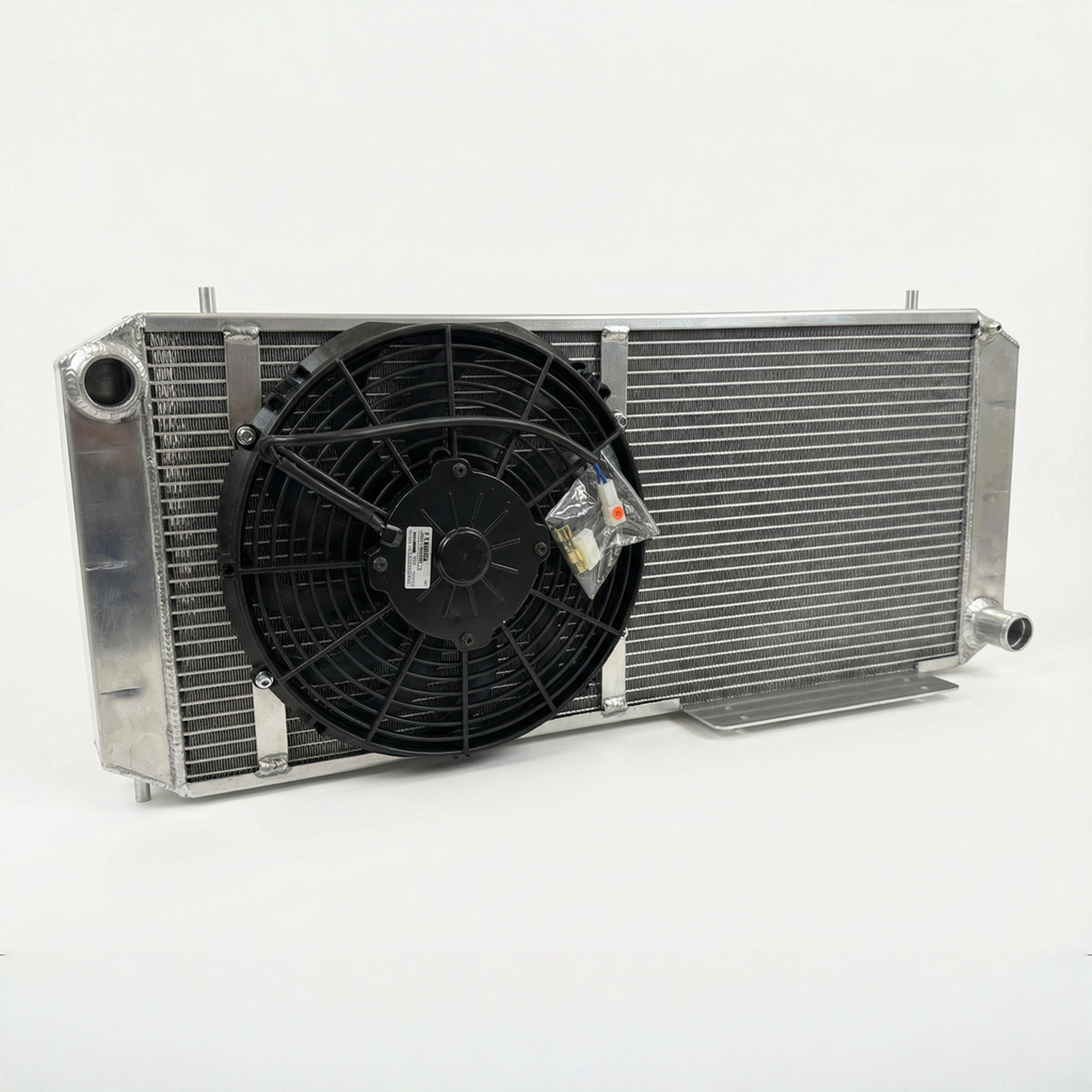

At its core is a single-pass, high-density aluminium structure engineered for maximum heat rejection. The unit comes complete with a high-performance SPAL fan and a full cable crimping kit, ensuring your airflow management is as reliable as the core itself. For versatility between the circuit and the street, an integrated mounting plate is sized to accommodate an auxiliary oil cooler or a small AC condenser.

Please note: This is a motorsport component utilizing a 10mm peg design. It will require a bespoke mounting solution with rubber or poly isolators to ensure proper vibration damping.

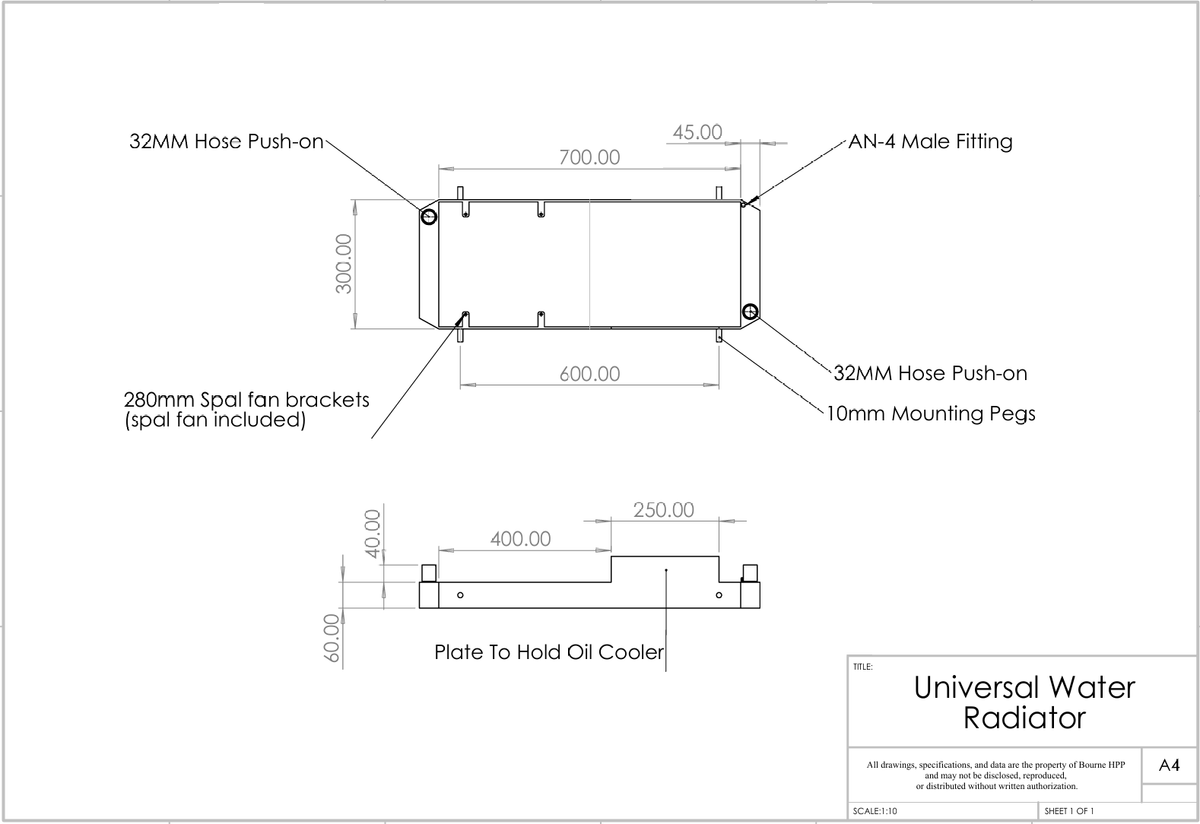

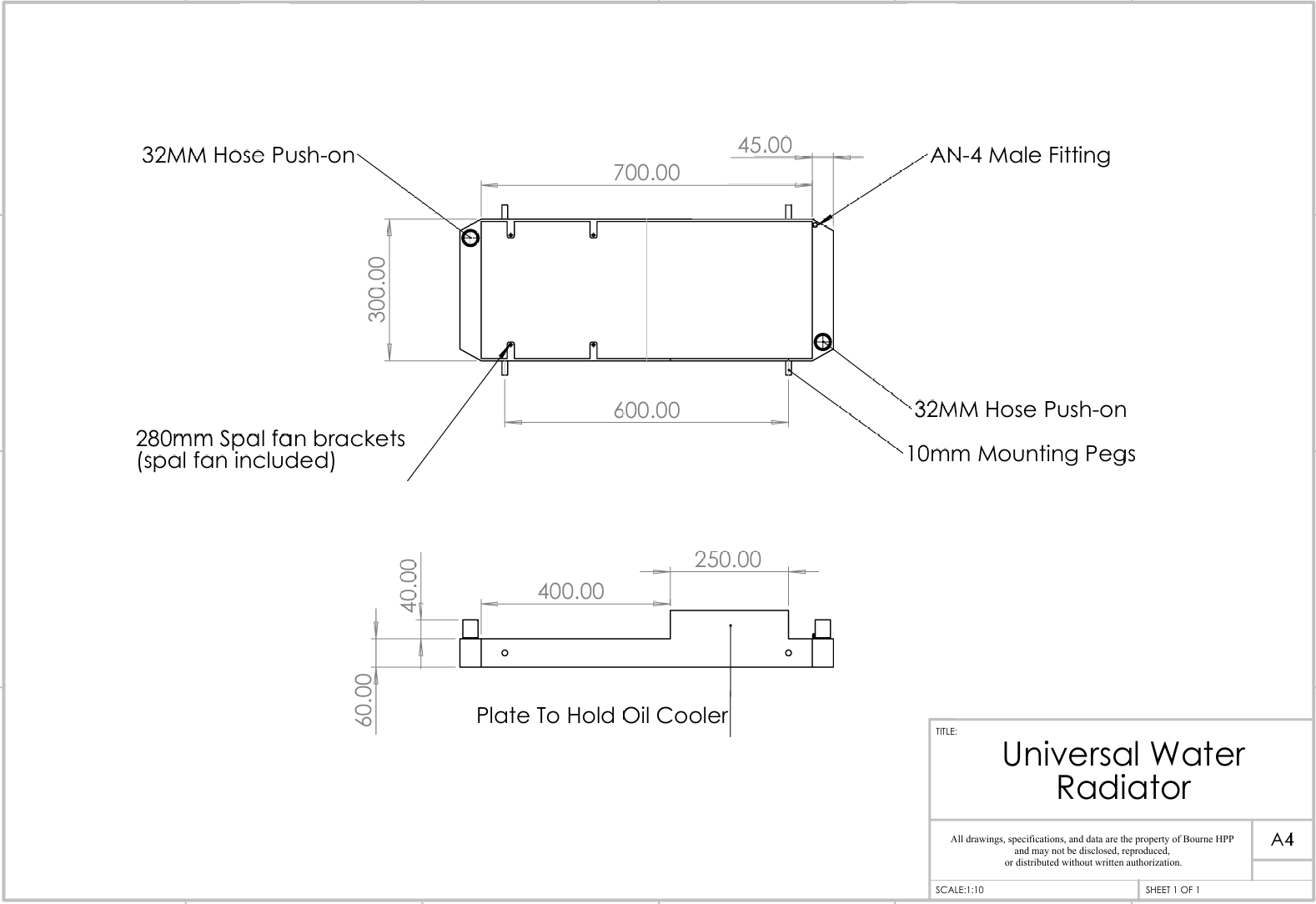

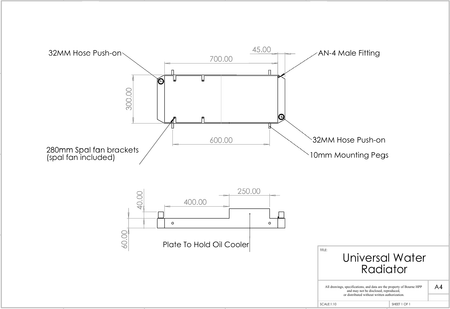

Specifications:

• Core: Single-pass high-density aluminium

• Cooling: Included SPAL fan

• Accessories: Cable crimping kit included

• Auxiliary Mount: Integrated plate for Oil Cooler or AC Condenser

• Mounting Points: 10mm peg design (Bespoke mounting required)

• Application: Track & High-Performance Street

Engineered for endurance. Built for heat management. Designed for the limit.

The Bourne HPP Alloy Radiator is the thermal insurance your engine needs on the track.
